BMW X5: USB port
General information
Follow the information regarding the connection of mobile devices to the USB port in the section on USB connections.
Additional information: USB connections.
In the center armrest
.png)

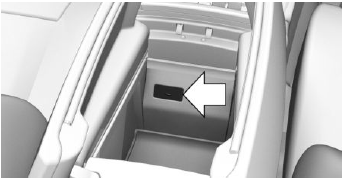

A USB port is located in the center armrest.
Properties:
- USB port Type C.
- For charging mobile devices and for data transmission.
- Charge current: max. 3 A.
In the center console
NOTICE
Objects in the storage compartment, e.g., large USB connectors, may block or damage the cover when it is being opened or closed. There is a risk of damage to property, among other potential damage. Make sure that the area of movement of the cover is clear while opening and closing it.
.png)
Press onto the cover.
.png)

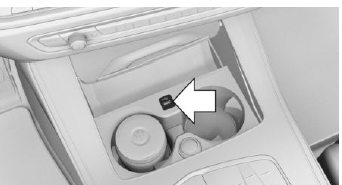

A USB port is located in the center console.
.png)

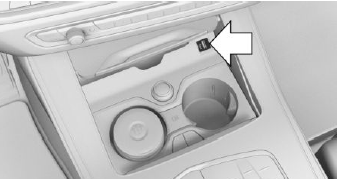

If the vehicle is equipped with thermo-cup holders, a USB port is located in the center console.
Properties:
- USB port Type A.
- For charging mobile devices and for data transmission.
- Charge current: max. 1.5 A.
