BMW X5: Replacing Battery Negative Lead
WARNING: Observe safety instructions for handling vehicle battery. Follow instructions for disconnecting and connecting battery.
IMPORTANT: Do not under any circumstances use force to pull/lever off Intelligent Battery Sensor (IBS).
Necessary preliminary tasks:
- Raise luggage compartment floor trim
Release screws (1).
Remove battery cover (2) upwards.
Fig. 149: Identifying Battery Cover
Loosen nut (1).
Tightening torque.
Remove battery negative lead with IBS.
Disconnect plug connection (2).
Unscrew nut (3).
Tightening torque.
Fig. 150: Identifying Plug Connection
THRESHOLD VALUES FOR BATTERY INSPECTION OF ALL BATTERY (TELEPHONE EXCEPT FOR TELEPHONE BATTERY)
Safety instructions for handling vehicle battery.
Test step 1 - before charging the battery

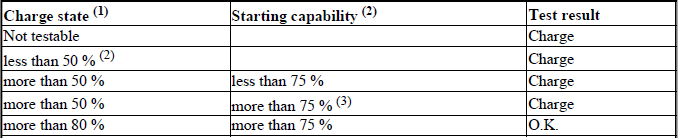

THRESHOLD VALUES FOR BATTERY INSPECTION - BEFORE CHARGING BATTERY
(1) Charge condition and starting power must always be evaluated together
(2) When test charging for more than 5 hours, use charger Gossen CG 32 or
Siemens / Gossen VB 801
(3) Fully charge until charge state is more than 80 %.
Test step 2 - after charging the battery
THRESHOLD VALUES FOR BATTERY INSPECTION - AFTER CHARGING BATTERY
(1) Charge condition and starting power must always be evaluated together
(2) When test charging for more than 5 hours, use charger Gossen CG 32 or
Siemens / Gossen VB 801
NOTE: If battery was checked on the positive terminal in the engine compartment, repeat check directly on battery for sake of safety.
