Special tools required:
IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
Necessary preliminary tasks:
Fig. 42: Identifying Cover Plug
Lift out retaining spring (1).
Remove cover plug (1).
Fig. 43: Lifting Out Retaining Spring
Unscrew guide screws (2).
Withdraw brake caliper backwards.
IMPORTANT: Tie brake caliper back and do not allow to hang from brake hose.
Installation:
Tightening torque 34 21 4AZ. Clean guide screws only; do not grease.
Check threads.
Replace all guide screws which are not in perfect condition.
Fig. 44: Identifying Plastic Plugs And Guide Screws
IMPORTANT: When pressing down piston, note brake fluid level in expansion tank.
Overflowing brake fluid will damage the paintwork.
Turn piston fully back with special tool 34 1 050.

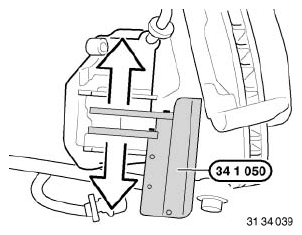

Fig. 45: Identifying Special Tool (34 1 050)
IMPORTANT: Mark any worn brake linings.
In the event of one-sided brake lining wear, do not change brake linings round.
Remove outer brake pad.
Inner brake lining is located with its spring in the piston.
Clean brake pads.
Do not grease backs of brake linings sleeve.

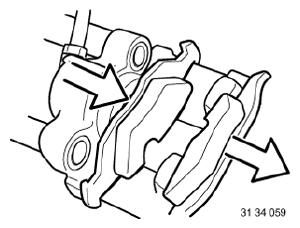

Fig. 46: Removing Outer Brake Lining
Check minimum brake disc thickness:
New brake linings may only be installed if the brake disc thickness is greater than or equal to the minimum brake disc thickness (MIN TH).
NOTE: The minimum thickness of the brake disc is designed so that it holds over the service life of a further set of brake pads if it is greater than or equal to the minimum brake disc thickness (MIN TH).

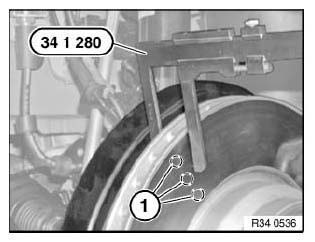

Fig. 47: Identifying Special Tool (34 1 280)
Check dust sleeve (1) for damage and replace if necessary.
IMPORTANT: Dust sleeve must not come into contact with anti-squeak compound as this may cause the dust sleeve to swell.
Clean contact face (2) of brake piston and apply a thin coating of anti-squeak compound.

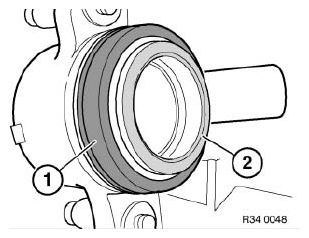

Fig. 48: Identifying Dust Sleeve
Clean contact surfaces (1...2) of brake lining hammer heads/brake caliper housing and coat with anti-squeak compound.
Fig. 49: Identifying Contact Faces Of Brake Lining Hammer Heads
Clean contact surface (3) of brake caliper and apply a thin coating of anti-squeak compound.
Fig. 50: Identifying Contact Face Of Brake Caliper
Clean brake caliper mounting bracket at hammer head guides and apply a thin coating of anti-squeak compound.
Fig. 51: Locating Brake Caliper Mounting Bracket
NOTE: After completing work:
