BMW X5: Removing And Installing Power Steering Pump For Power Steering Gear With Active Front Steering (N62TU)
WARNING: Danger of poisoning if oil is ingested/absorbed through the skin! Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with plugs.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir.
- Remove belt pulley.
- Remove fan cowl.
- Remove front assembly underside protection.
Release union nut (2) and detach pressure line from power steering pump.
Release hose clamp (1) and detach suction line from power steering pump.
Disconnect plug connection on rear side of power steering pump.
Installation:
Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.
Align suction line by way of marking to connection on power steering pump.
Tightening torque 32 41 4AZ.
.png)
Fig. 87: Identifying Union Nut And Hose Clamp
Release screws (1, 2) and remove power steering pump.
Installation:
Make sure screws are installed in correct positions.
- Screw (1) M10x50
- Screw (2) M10x130
Tightening torque 32 41 3AZ.
.png)
Fig. 88: Identifying Power Steering Pump And Screws
After installation:
- Fill and bleed hydraulic system.
- Check pipe connections for leaks.
REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR POWER STEERING GEAR WITH DYNAMIC DRIVE (N62, N62TU)
WARNING: Danger to life! Mount securing fixture for vehicle on lifting platform to prevent the vehicle from slipping off or tilting down.
Secure engine in installation position to prevent it from falling down.
WARNING: Danger of poisoning if oil is ingested/absorbed through the skin! Risk of injury if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with plugs.
NOTE: When replacing power steering pump: Fluid reservoir must be replaced in event of metal abrasion, sluggish pump shaft or increased wear! The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove belt pulley.
- Lower front axle carrier.
Version with active front steering: Disconnect plug connection (1).
Release hose clamp (4) and detach suction line from power steering pump.
Release banjo bolt (3) and disconnect pressure line for power steering from power steering pump.
Release banjo bolt (2) and detach pressure line for Dynamic Drive from power steering pump.
Installation:
Replace all sealing rings.
Make sure hydraulic lines are laid without tension and with sufficient spacing to adjoining components.
.png)
Fig. 89: Identifying Hose Clamp, Banjo Bolt And Plug Connection
Align suction line by way of marking to connection on power steering pump.
Tightening torque 32 41 4AZ (for power steering).
Tightening torque 32 41 10AZ (for Dynamic Drive).
Release screws (1) and remove holder (2) and power steering pump towards bottom.
Tightening torque 32 41 3AZ.
.png)
Fig. 90: Identifying Power Steering Pump Holder And Screws
After installation:
- Fill and bleed hydraulic system.
- Check pipe connections for leaks.
- Perform CHASSIS ALIGNMENT CHECK.
- Carry out steering angle sensor adjustment/adjustment for active front steering.
- If necessary, carry out initial Dynamic Drive operation.
REMOVING AND INSTALLING VANE PUMP FOR POWER STEERING UNIT
NOTE: Procedure is described in the document "POWER STEERING PUMP FOR POWER STEERING GEAR WITH ACTIVE FRONT STEERING..."
REMOVING AND INSTALLING/REPLACING BELT PULLEY ON VANE PUMP FOR POWER STEERING
NOTE: Carry out preliminary work as described in 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62/N62TU).

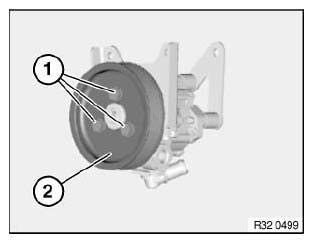

Slacken screws (1).
Relieve tension on drive belt and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation:
Lettering on belt pulley (2) must point forwards.
Replace microencapsulated screws.
Tightening torque 32 41 2AZ.
.png)
Fig. 91: Identifying Belt Pulley And Screws
