BMW X5: Removing And Installing Complete Glass Slide/Tilt Sunroof

BMW X5 (G05) 2019-2024 Service & Repair Manual / Slide/Tilt Roof / Electrical Sun Roof Components / Removing And Installing Complete Glass Slide/Tilt Sunroof

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Two persons are required to help in removing the glass slide/tilt sunroof.

Unfasten plug connection (1) and disconnect.

Installation:

Initialize glass slide/tilt sunroof.

Electrical Sun Roof Components

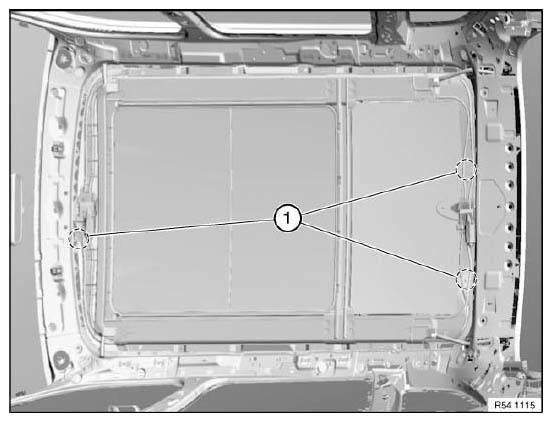

Fig. 55: Identifying Plug Connection

IMPORTANT: Airbag lead must not be damaged.

Unclip holder with airbag lead from glass slide/tilt sunroof frame.

Installation:

Lay airbag lead without tension or kinks.

Electrical Sun Roof Components
Fig. 56: Locating Holder With Airbag Lead

Electrical Sun Roof Components
Fig. 57: Identifying Water Drain

NOTE: Check hoses for damage and moisten with water before fitting

Electrical Sun Roof Components

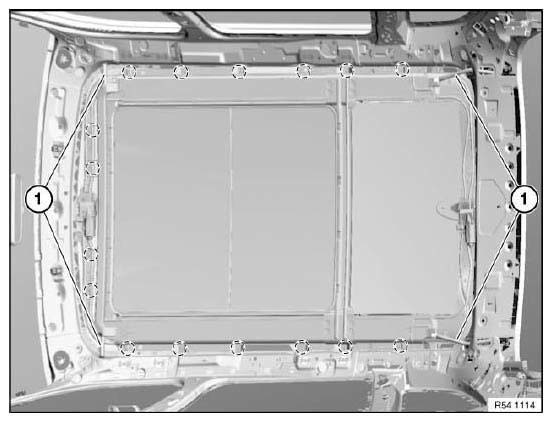

Fig. 58: Identifying Screw

IMPORTANT: Do not damage any surrounding parts when removing the glass slide/tilt sunroof.

Installation:

If necessary, remove fabric adhesive tape.

To stop grating noises, secure all screws (1) prior to installation with plastic washers (2).

If the standard screws can no longer grip, use "repair screws" (have larger threads).

IMPORTANT: Do not crush any cables when fitting the glass slide/tilt sunroof. Initialize glass slide/tilt sunroof.

Electrical Sun Roof Components
Fig. 59: Identifying Plastic Washers And Screw

Electrical Sun Roof Components

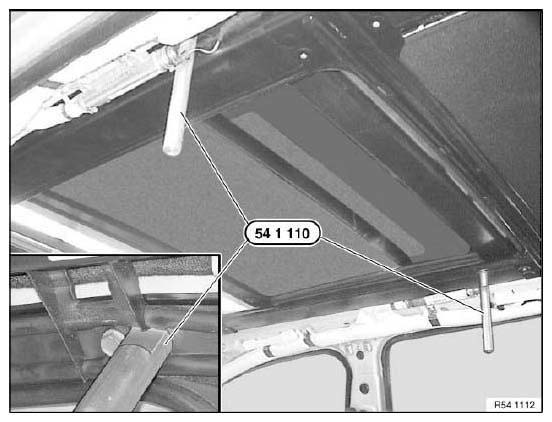

Fig. 60: Identifying Special Tools (54 1 110)

Installation:

To align panorama sunroof to body-cutout, insert screws and tighten loosely.

Panorama sunroof must still be able to move in the body-cutout.

On account of leaks, panorama sunroof must be exactly aligned to body-cutout.

Insert special tool 54 1 110 into centering bores up to stop in panorama sunroof and body.

Tighten down screws.

Tightening torque: 54 12 6AZ.

IMPORTANT: Do not crush any cables when fitting the glass slide/tilt sunroof.

Initialize glass slide/tilt sunroof.
