BMW X5: Washer fluid
General information
All windshield washer jets are supplied from one tank.
Use a mixture of tap water and windshield washer concentrate. If desired, a windshield washer concentrate containing antifreeze can be used.
Recommended minimum fill quantity: 0.2 US gal/1 liter.
Safety information
Warning
Some types of antifreeze can contain harmful substances and are flammable. There is a risk of fire and an injury hazard. Follow the instructions on the containers. Keep antifreeze away from ignition sources. Do not refill operating materials into different bottles. Store operating materials out of reach of children.
United States: the washer fluid mixture ratio is regulated by the U.S. EPA and many individual states; do not exceed the allowable washer fluid dilution ratio limits that apply. Follow the usage instructions on the washer fluid container.
Use of BMW's Windshield Washer Concentrate or the equivalent is recommended.
Warning
Washer fluid can ignite and catch fire on contact with hot engine parts. There is a risk of injury or risk of damage to property. Only add washer fluid when the engine is cooled down.
Next, fully close the lid of the washer fluid reservoir.
NOTICE
Silicon-containing additives in the washer fluid for the water-repelling effect on the windows can lead to damage to the washing system.
There is a risk of damage to property, among other potential damage. Do not add silicon-containing additives to the washer fluid.
NOTICE
Mixing different windshield washer concentrates or antifreeze can damage the washing system. There is a risk of damage to property, among other potential damage. Do not mix different windshield washer concentrates or antifreeze.
Follow the information and mixture ratios provided on the containers.
Overview
.png)

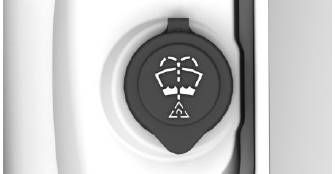

The washer fluid reservoir is located in the engine compartment.
Malfunction
The use of undiluted windshield washer concentrate or alcohol-based antifreeze can lead to incorrect readings at temperatures below +5 ℉/-15 ℃.
