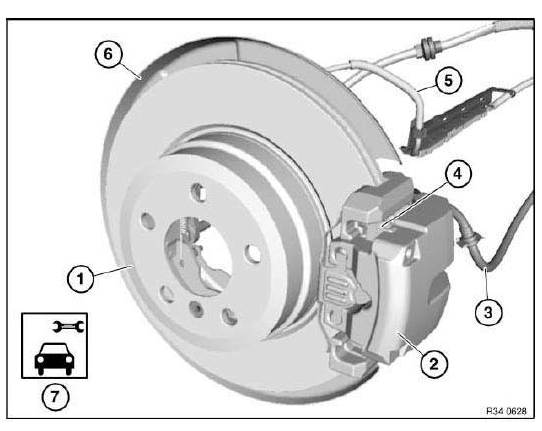

Fig. 40: Identifying Rear Brake Components
- Brake disc
- Brake caliper
- Brake hose
- Brake pads
- Pulse generator / brake pad sensor
- Brake guard plate
- Checking thickness of brake pad
REMOVING AND INSTALLING / REPLACING A BRAKE CARRIER / BRAKE GUARD AT REAR
Necessary preliminary tasks:
- Remove handbrake shoes.
- Remove wheel hub.
Release screws (1) and remove brake carrier (2).
Installation:
Tightening torque 34 21 3AZ.
REMOVING AND INSTALLING / REPLACING A BRAKE CARRIER / BRAKE GUARD AT REAR
Necessary preliminary tasks:
- Remove handbrake shoes
- Remove wheel hub
Release screws (1) and remove brake carrier (2).
Installation:
Tightening torque 34 21 3AZ.
.png)
Fig. 41: Identifying Brake Carrier Screw
