BMW X5: Overview
Depending on the equipment, the following cameras
and sensors are installed in the vehicle:
- Front camera.
- Cameras behind the windshield.
- Top view cameras.
- Rearview camera.
- Infrared camera.
- Front radar sensor.
- Radar sensors, side, front.
- Radar sensors, side, rear.
- Ultrasound sensors in the front/rear bumpers.
- Ultrasonic sensors, side.
Keep the vehicle cameras and sensors, as well
as surrounding areas, clean and unobstructed.
Cameras

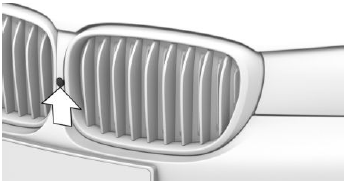

Front camera
![Sensors of the vehicle](images/books/1631/index.38(1).png)
Front camera.

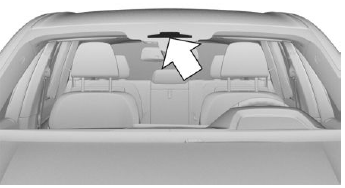

Cameras behind the windshield
![Sensors of the vehicle](images/books/1631/index.39(1).png)
The cameras are located in the area of the interior
mirror.

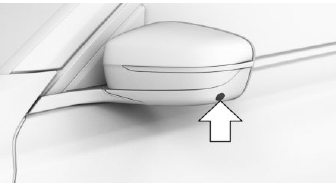

Top view cameras
![Sensors of the vehicle](images/books/1631/index.40(1).png)
One camera is located at the bottom of each exterior
mirror housing.

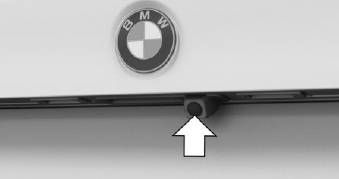

Rearview camera
![Sensors of the vehicle](images/books/1631/index.41(1).png)
The camera is located in the handle of the tailgate.

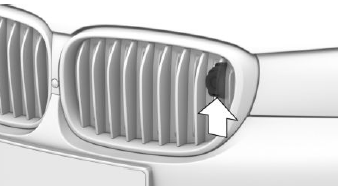

Infrared camera
![Sensors of the vehicle](images/books/1631/index.42(1).png)
The infrared camera of the Night Vision is located
in the radiator grille.
System limits of the cameras
The cameras may not be fully functional and may
provide incorrect information in the following situations:
- In heavy fog, wet conditions, or snowfall.
- On steep hills, in steep depressions or in tight
curves.
- When the camera field of view is covered, for
instance by a fogged up windshield or labels.
- If the camera lens is dirty or damaged.
- With exterior mirrors folded in.
- When driving toward bright lights or strong
reflections, e.g., because of a setting sun.
- When it is dark outside. Does not apply to the
infrared camera of the Night Vision.
- Infrared camera of the Night Vision: at very
high outside temperatures.
- Camera behind the windshield: if the camera
has overheated and been temporarily
switched off due to excessively high temperatures.
- Camera behind the windshield: during calibration
of the camera immediately after vehicle
delivery.
If applicable, a Check Control message will be
displayed when the system limits are reached.
