BMW X5: Cylinder Head Cover

As stated before, the cylinder head cover used on all of the new NG6 engines is made from plastic. However, the design differs between the engines due to engine equipment.

For example, the N54 engine does not use Valvetronic and therefore does not need the accommodation for the VVT motor. Also, the crankcase ventilation system is different on the N54. Some of the crankcase venting components are integrated into the cylinder head cover such as the cyclone separator.

The N52KP and N51 engines have the same cylinder head cover. The cover also includes some of the crankcase venting system components.

Engine Service Information

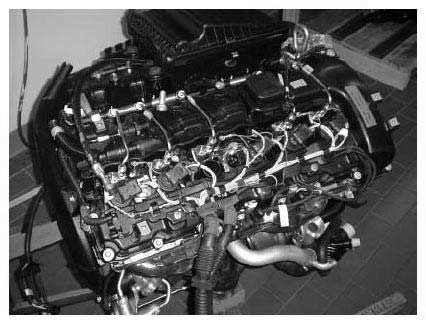

Fig. 13: Identifying Cylinder Head Cover

NOTE: Some engines with plastic cylinder head covers may have aluminum bolts.

Cylinder Head

Each of the new NG6 engines has a unique cylinder head design. Due to some of the technical requirements, the cylinder heads are not interchangeable between these engines. The cylinder head from the N52KP is carried over from the N52 with little change.

The cylinder head from the N54 engine does not have Valvetronic. The design of the engine also requires accommodation of the "direct" fuel injector in the combustion chamber. Most of the external dimensions are the same as the N52 to accommodate accessories and ancillary components.

The N51 engine is a SULEV II compliant design which has a lower compression ratio. The combustion chamber design has been modified to work in conjunction with the N51 piston to achieve the required emission goals.

Engine Service Information

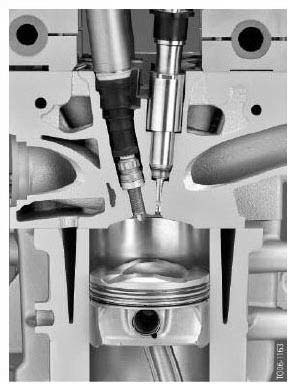

Fig. 14: Identifying Fuel Injector In Combustion Chamber
