BMW X5: Seats, mirrors and steering wheel

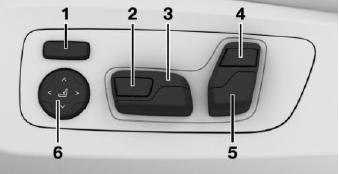

Electrically adjustable seats
.png)
- Backrest width
- Thigh support
- Forward/backward, height, seat tilt
- Upper backrest
- Backrest tilt, head restraint
- Lumbar support
Adjusting the head restraint

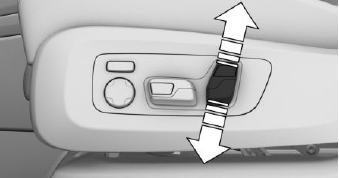

Adjusting the height
.png)
Press switch up or down.

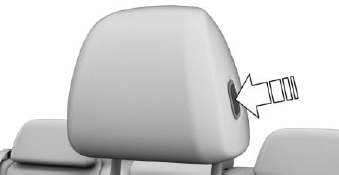

Adjusting distance
.png)
- Back: press the button and push the head restraint toward the rear.
- Forward: pull the head restraint toward the front.
After setting the distance, make sure that the head restraint engages correctly.

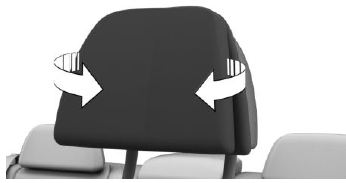

Side extensions
.png)
Fold the side extensions forward to increase lateral support.

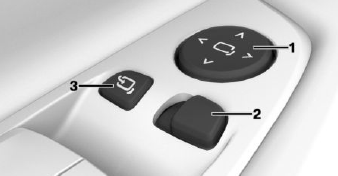

Adjusting the exterior mirrors
.png)
- Adjusting
- Selecting a mirror, Automatic Curb Monitor
- Folding in and out
Adjusting the steering wheel

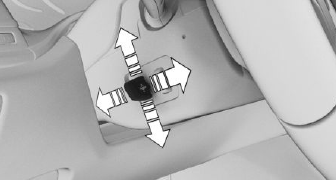

Electrical steering wheel adjustment
.png)
Press the switch to adjust the forward/back position and height of the steering wheel to the seat position.
Memory function
Principle
The following settings can be stored and, if necessary, retrieved using the memory function:
- Seat position.
- Exterior mirror position.
- Steering wheel position.
- Height of the Head-up Display.
Storing
1. Set the desired position.
2.
Press the button. The writing on
the
button lights up.
3. Press the desired button 1 or 2 at the door while the writing is lit. A signal sounds.
Calling up settings
Press the desired button 1 or 2.
