BMW X5: Replacing Rear Left Side Panel (Partial Replacement, Door Opening)
Read contents of Body, General. Spot-weld bonding is used on this vehicle. Observe specific procedure.
Use only approved spot-welding apparatus for repairs! Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Following new body parts are required:
- Side frame, rear
- Shaped part, entrance, outer (not shown)
.png)
Fig. 201: Identifying Side Frame, Rear
.png)

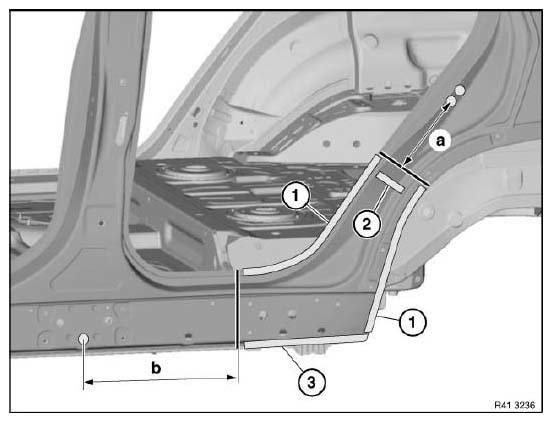

Fig. 202: Identifying Open Weld Joints Area
Mark severance cuts in accordance with specified measurements and cut.
IMPORTANT: Cut outer metal sheet only.
Measurement a = approx. 200 mm from middle of lower lock striker screw point.
Measurement b = approx. 420 mm from centerpoint of hole dia. 20 mm.
Open weld joints in areas (1) and (3).
Installation information:
- Apply window glass adhesive to cavity acoustic baffle (2).
- Weld in reinforcing panels at all severance cuts.
- Bond and rivet new part in area (3).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Service picture board - Aluminum and steel/bonding and welding).
Double number of rivets with respect to welding spots in area (3).
Open adhesive joints in areas (1) and (2).
Open weld joint in area (1).
Installation information:
Welding spot is omitted from area (1).
Glue new part in areas (1) and (2).
Apply window glass adhesive to cavity acoustic baffle (3).
.png)
Fig. 203: Identifying Open Weld Joints Area
REMOVING AND INSTALLING/REPLACING FRONT LEFT SIDE PANEL MODULE CARRIER
Necessary preliminary tasks:
- Remove front side panel.
Release screws (1).
Slacken nut (2).
.png)
Fig. 204: Identifying Screws And Nut
REPLACING REAR LEFT OR RIGHT DOOR
Read contents of Body, General.
Necessary preliminary tasks:
- Remove rear door.
Following new body parts are required:
- Door, rear
- Crash reinforcement
.png)
Fig. 205: Identifying Door, Rear And Crash Reinforcement
Feed in crash reinforcement (1).
Tighten down screws (2).
Tighten to specified torque.
.png)
Fig. 206: Identifying Crash Reinforcement And Screws
