BMW X5: Front Side Doors

ADJUSTING DOOR

CAUTION: Do not damage adjoining body parts.

Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe gap dimensions.

The door must be provided with all attachment parts for correct adjustment.

Adjust screwed body parts from rear to front.

The following illustrations are schematic representations and are to be applied to the relevant vehicle type.

Front Side Doors

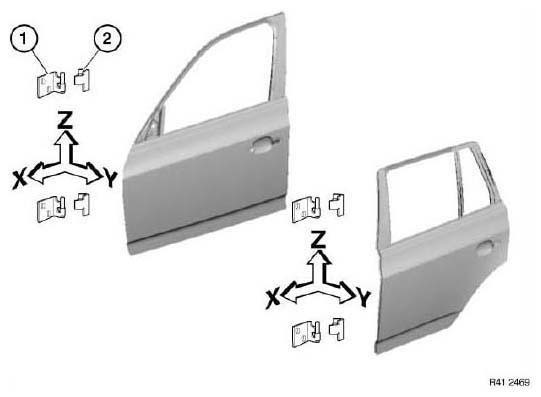

Fig. 207: Adjusting Door Screw

Slacken lock striker, remove if necessary.

Slacken screws (2) on door until door can still just be moved.

If adjustment range is not sufficient, slacken screws (1) on body.

NOTE: Rear door screw connection accessible from inside only.

Check that adjoining body parts are flush in terms of height and correct if necessary.

NOTE: Vertical adjustment of door must not be influenced by lock striker.

When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Front Side Doors

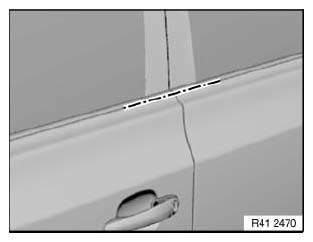

Fig. 208: Identifying Vertical Adjustment Of Door

Tighten down screws (1) until lock striker can still just be moved.

Move lock striker sideways in order to adjust transition between door and rear side panel.

Tighten to specified torque.

NOTE: When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Front Side Doors

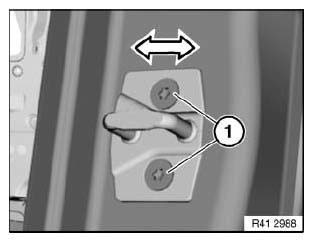

Fig. 209: Identifying Lock Striker And Screws

After installation:

REMOVING AND INSTALLING DOOR

IMPORTANT: Do not damage adjoining body parts.

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Open door.

Release screw on connector frame.

Front Side Doors

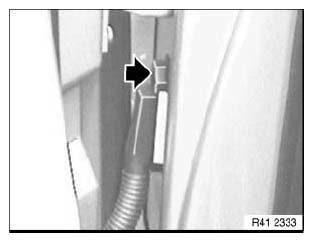

Fig. 210: Identifying Screw On Connector Frame

NOTE: Secure door against closing.

Release screw (1) on door retainer.

Open door up to stop.

Front Side Doors

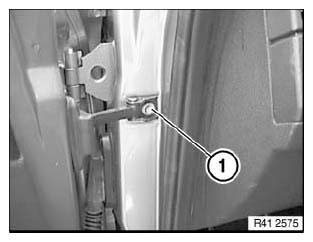

Fig. 211: Identifying Screw On Door Retainer

Release nuts between both hinge elements at top and bottom.

Front Side Doors
Fig. 212: Identifying Nuts Between Both Hinge Elements

Pull plug connection from door pillar, unlock by pulling out bar and detach.

Unhinge door by moving upwards and placing it on a suitable surface.

Installation:

If necessary, adjust door.

Front Side Doors

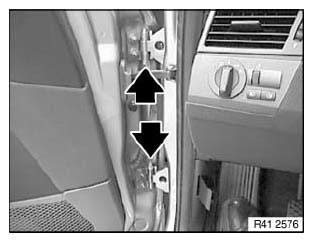

Fig. 213: Identifying Plug Connection Of Door Pillar
