BMW X5: Replacing Radial Shaft Seal For Front Axle Output (ATC 700)

BMW X5 (G05) 2019-2024 Service & Repair Manual / Transfer Box / Transmission Shafts / Replacing Radial Shaft Seal For Front Axle Output (ATC 700)

Special tools required:

IMPORTANT: After completion of work, check transmission oil level. See Replenishing /Changing Transfer Case Oil (ATC 700).

Use only the approved gear oil. See Replacing Output Flange on Transfer Box at Rear (ATC700) in this transfer box.

Necessary preliminary tasks:

Remove protective cap (1) with a screwdriver.

Transmission Shafts
Fig. 28: Removing Protective Cap With Screwdriver

Drive a hole into radial shaft seal (1) using a centre punch (2).

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

Transmission Shafts
Fig. 29: Driving Hole Into Radial Shaft Seal

Screw in special tool 23 0 490.

Drive out radial shaft seal (1) with impact weight (2).

Transmission Shafts
Fig. 30: Identifying Radial Shaft Seal And Impact Weight With Special Tool

Drive in radial shaft seal with special tool 27 1 470 DRIFT.

Transmission Shafts
Fig. 31: Identifying Radial Shaft Seal With Special Tool (27 1 470)

Add final details to vehicle.

Check oil level.

Check transmission for leaks.

DTC INDEX

550i, 650i, 750i, 750Li & X5

SELF-DIAGNOSTICS DTCS

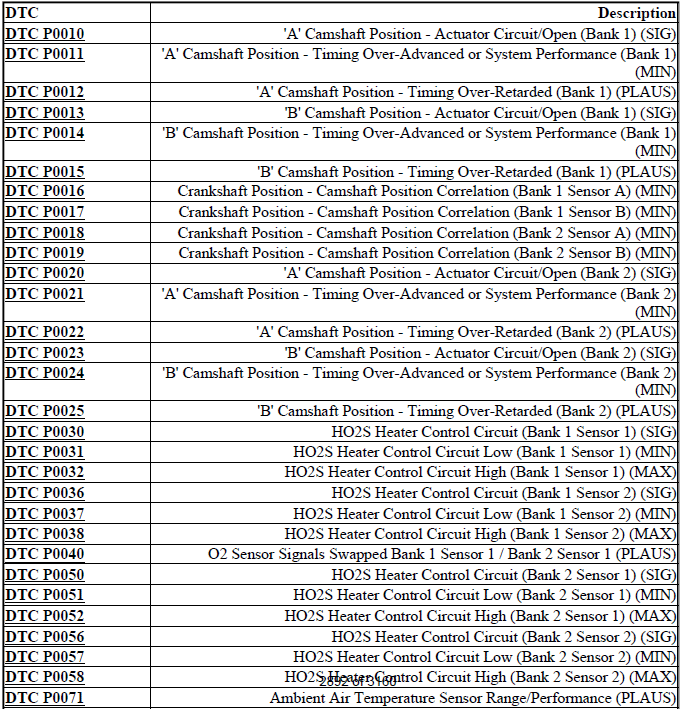

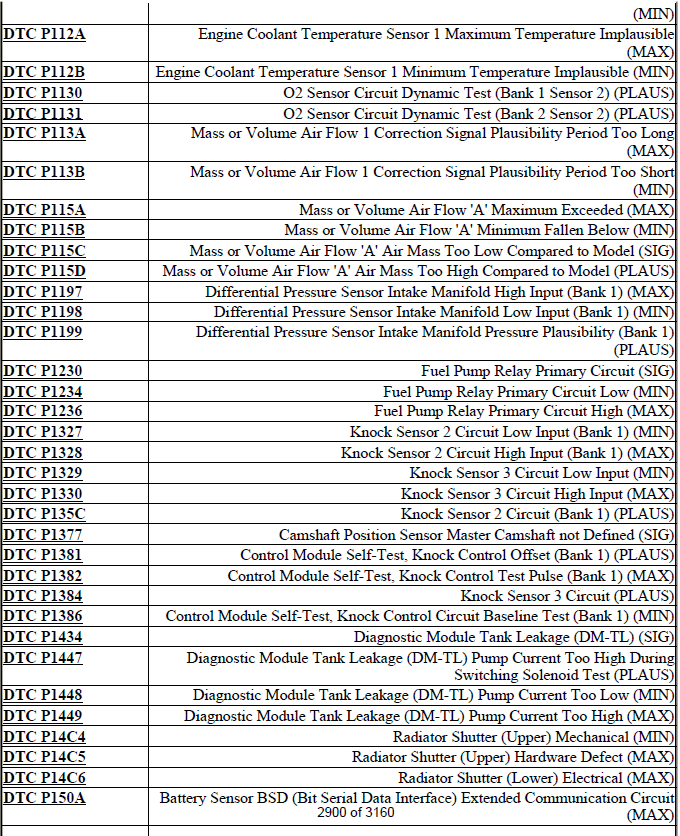

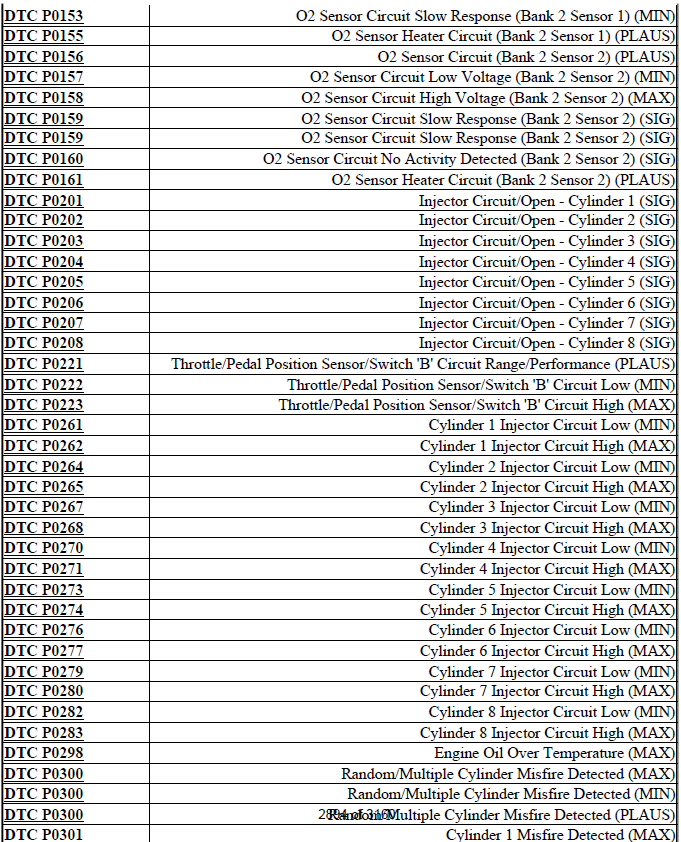

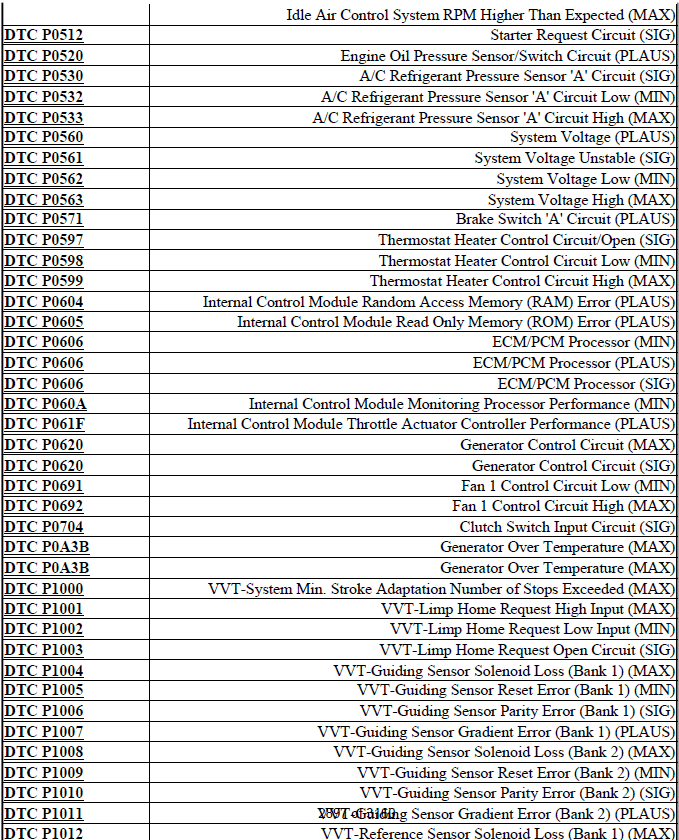

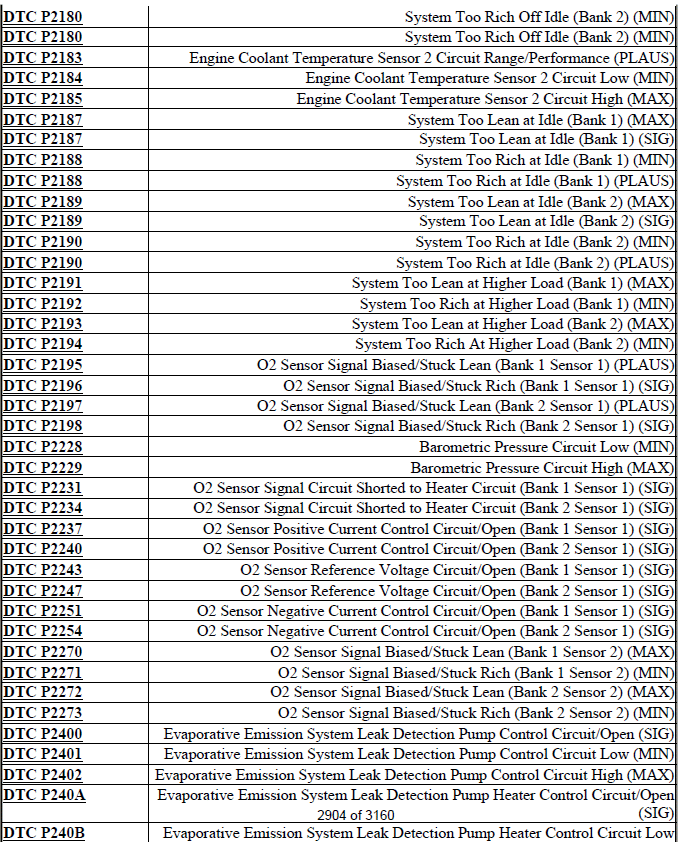

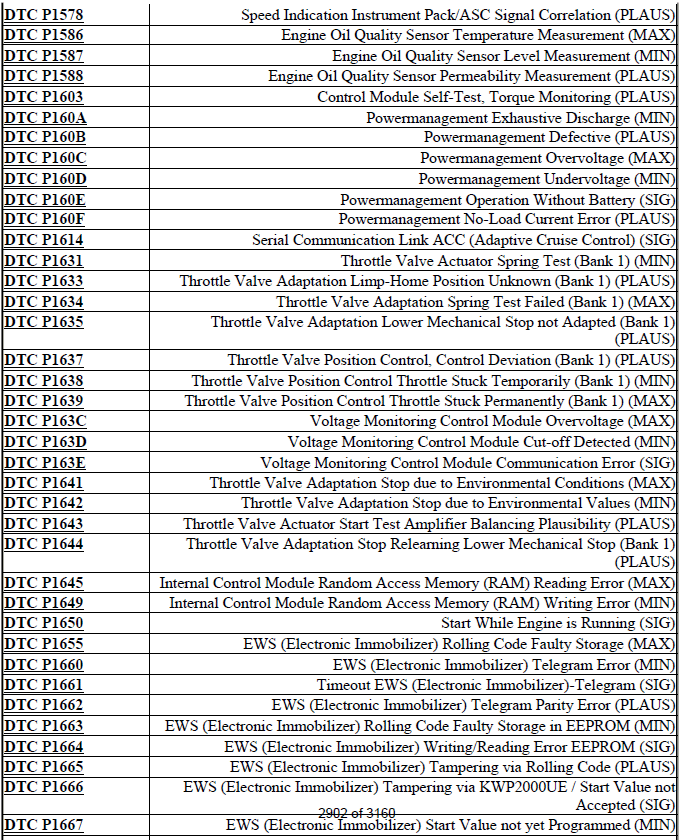

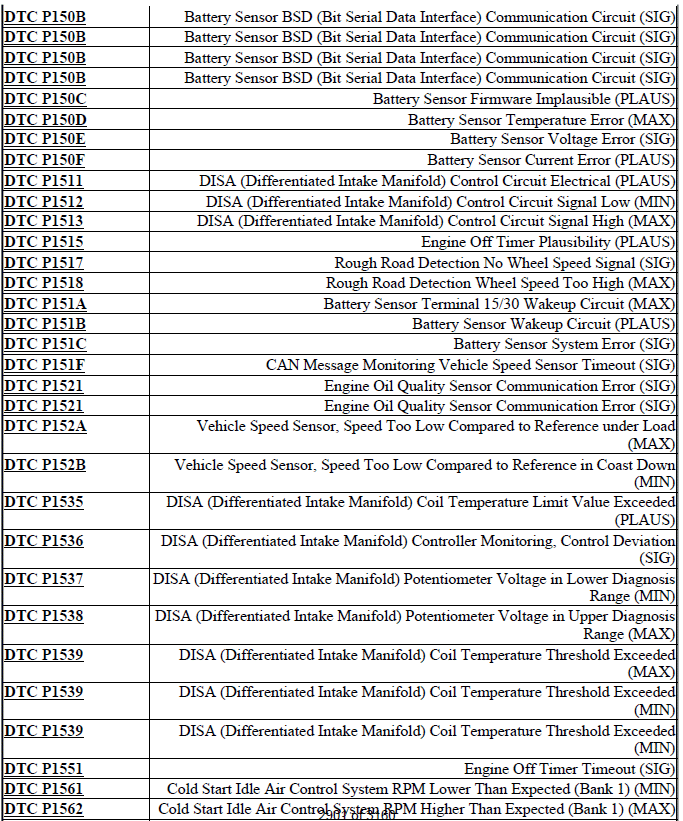

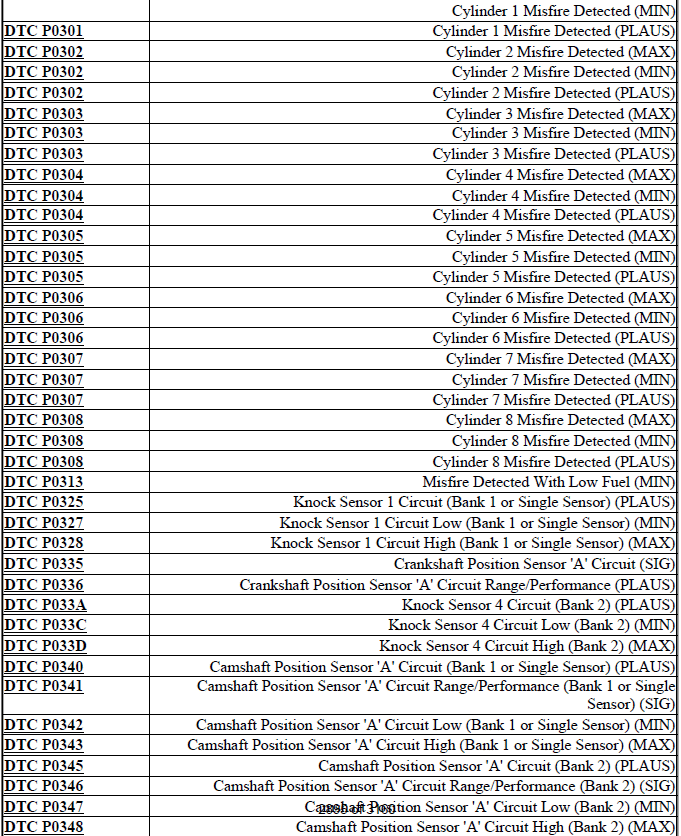

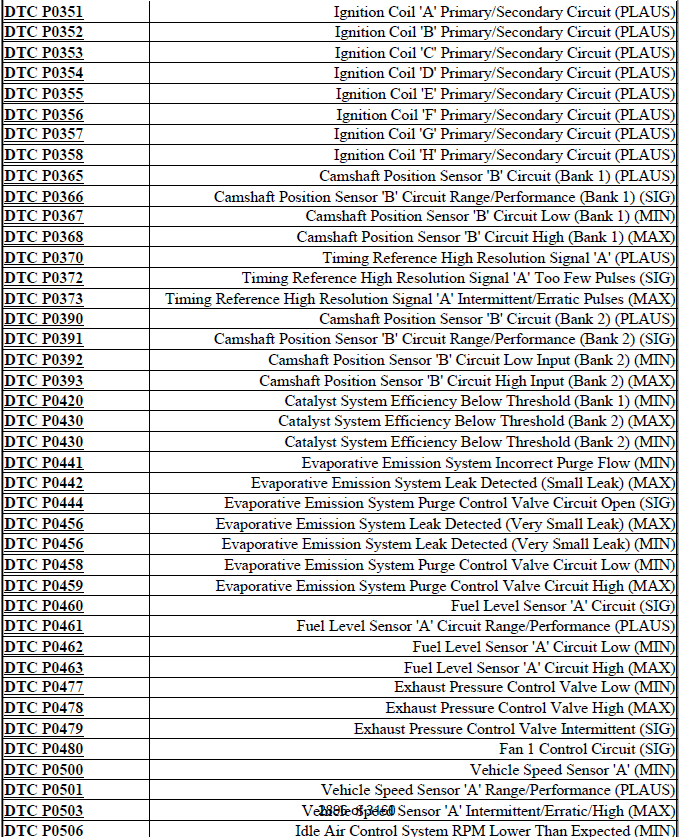

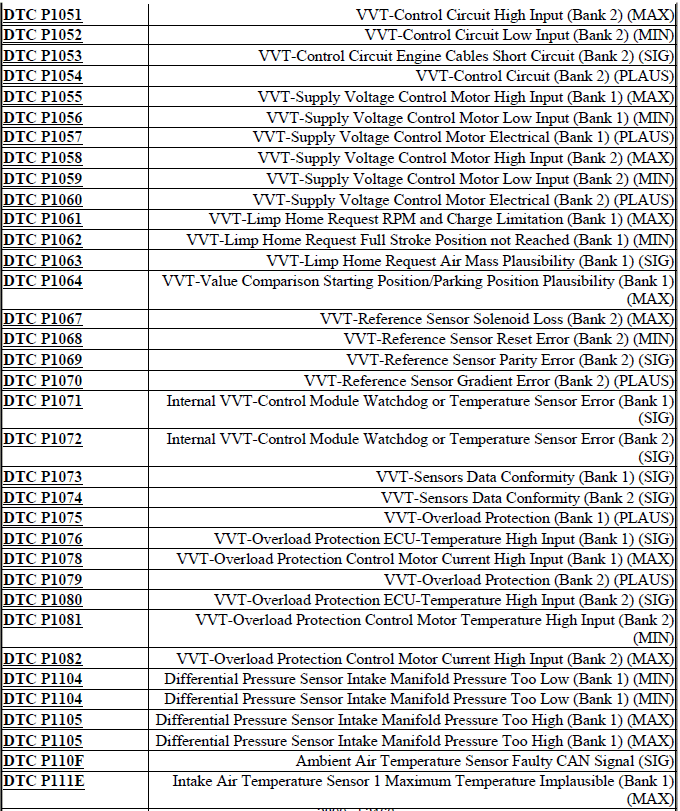

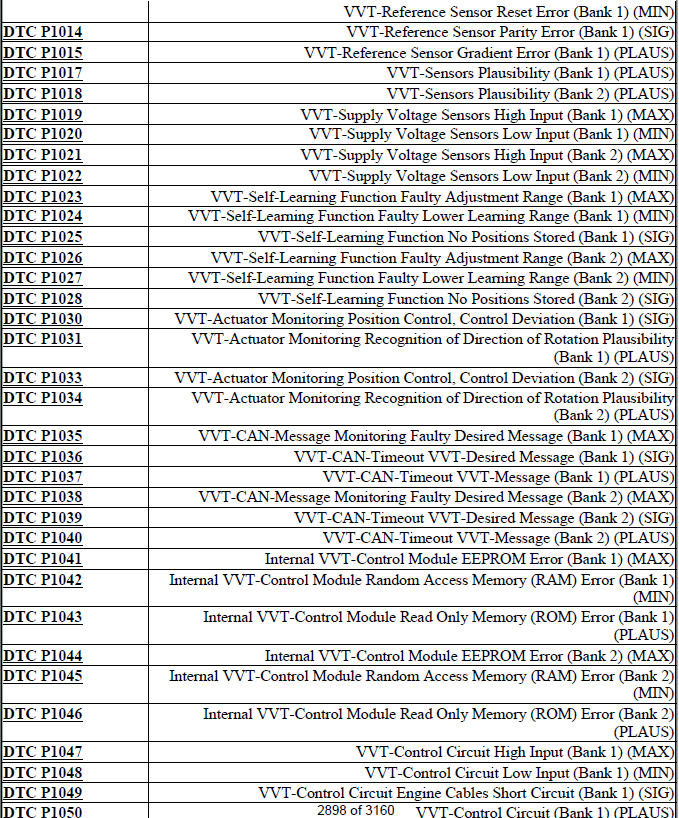

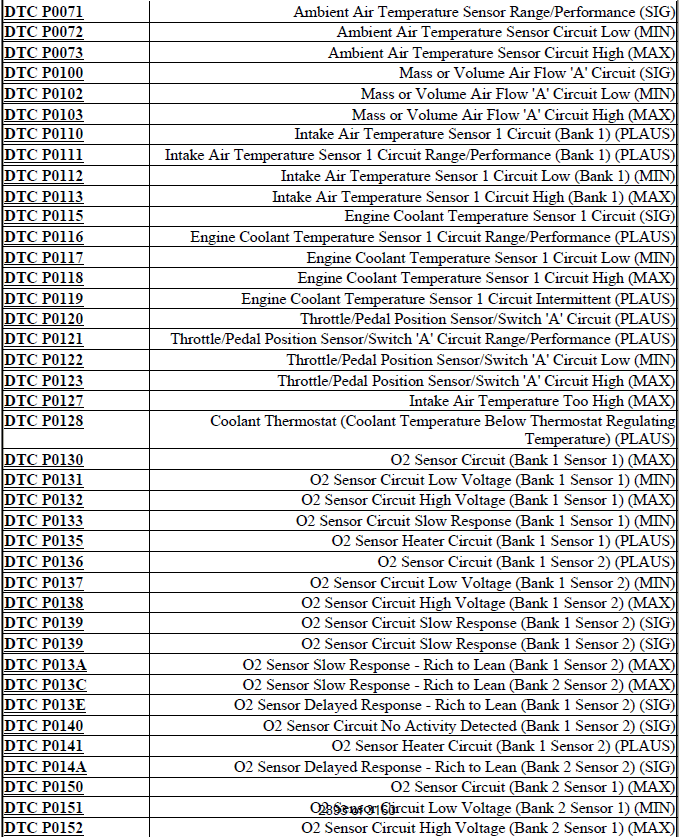

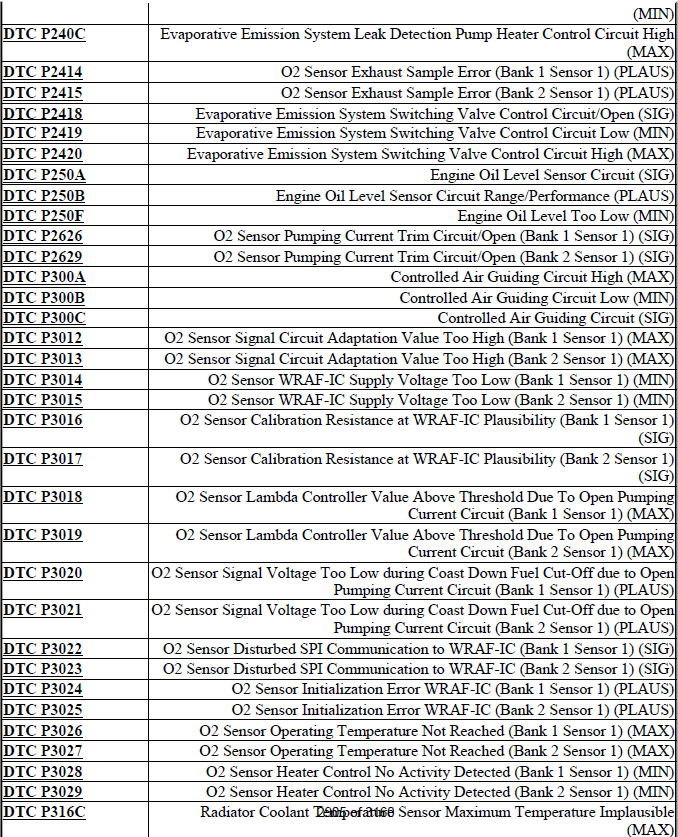

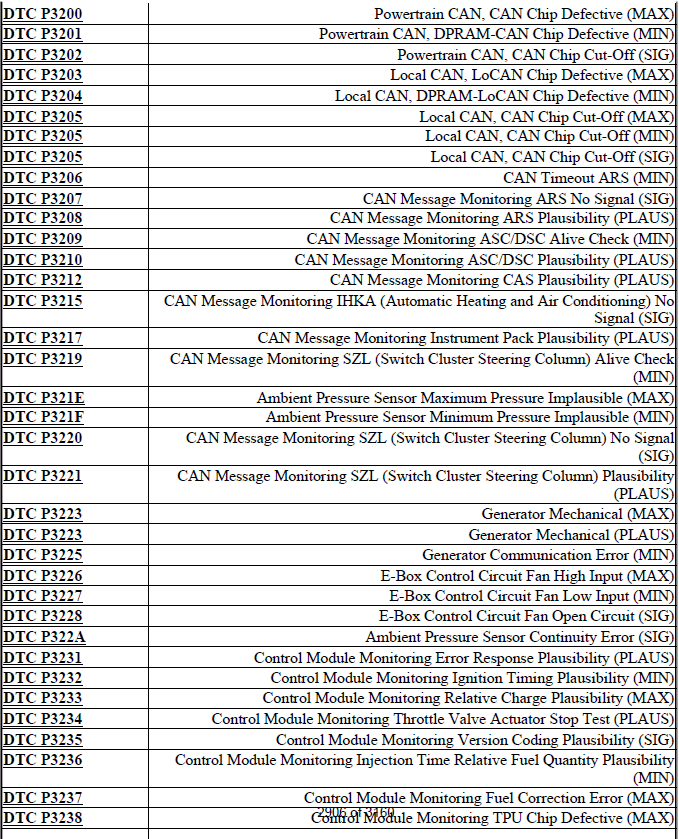

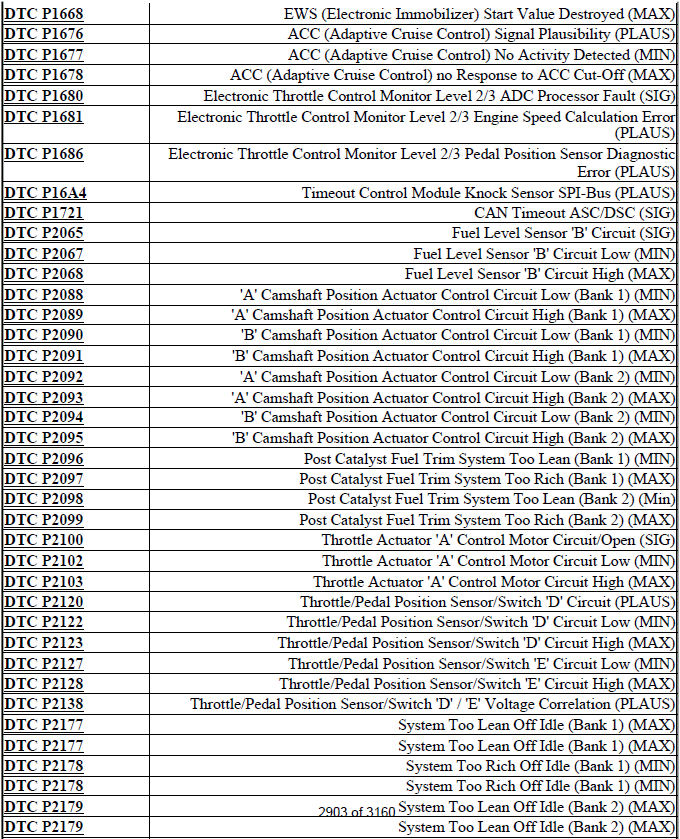

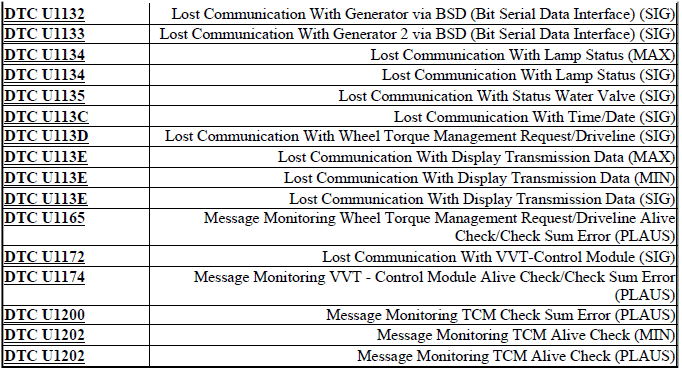

SELF-DIAGNOSTICS DIAGNOSTIC TROUBLE CODE (DTC) LIST

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX

DTC INDEX
