BMW X5: Replacing Backrest Cover For Rear Seat (Through-Loading System) On Right
Special tools required:
- 52 0 050.
Necessary preliminary tasks:
- Remove right backrest cover.
- Remove head restraint guides.
- Remove backrest actuator trim and lock trim.
Lever out welt in marked area.
.png)
Fig. 181: Identifying Welt Marked Area
Detaching cover and padding:
- Release all retainers in marked area
- Remove cover from padding
- Remove remaining retainers from cover and padding
.png)
Fig. 182: Identifying Retainers Marked Area
Installation:
Insert new retainer (2) with special tool 52 0 050 and bend closed.
- Padding
- Retainer
- Trim wire in padding
- Trim wire in seat cover
- Back-rest cover
.png)

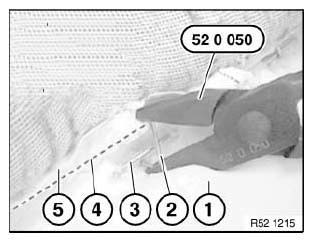

Fig. 183: Identifying Special Tool (52 0 050)
Replacing cover:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
.png)
Fig. 184: Identifying Trim Wires Cover Pockets
REPLACING BACKREST COVER FOR RIGHT REAR SEAT
Special tools required:
- 52 0 050.
Necessary preliminary tasks:
- Remove right rear seat.
- Remove head restraint locators.
- Remove trim for rear seat back actuator.
- Remove rear panel trim.
Lever welt in marked area (1) out of backrest frame.
Remove backrest cover with padding.
Detaching cover and padding:
- Release all retainers in marked area
- Remove cover from padding
- Remove remaining retainers from cover and padding
Installation:
Insert new retainer (2) with special tool 52 0 050 and bend closed.
- Padding
- Retainer
- Trim wire in padding
- Trim wire in seat cover
- Backrest cover
Replacing cover:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
REPLACING PADDING FOR REAR SEAT (THROUGH - LOADING SYSTEM)
Operation is identical to:
Replacing seat cover for rear seat.
