BMW X5: Removing And Installing Mechanism For Rear Glass Lid

BMW X5 (G05) 2019-2023 Service & Repair Manual / Slide/Tilt Roof / Sunroof / Removing And Installing Mechanism For Rear Glass Lid

Necessary preliminary tasks:

Overview of glass lid mechanism:

Sunroof

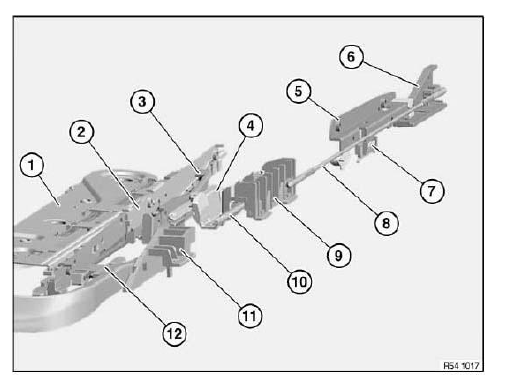

Fig. 15: Identifying Glass Lid Mechanism Components

  1. Floating roofliner mechanism
  2. Mechanism, front glass lid
  3. Drive wedge
  4. Drive plate
  5. Mechanism, rear glass lid
  6. Control carriage, rear glass lid
  7. Spring retainer
  8. Drive cable, rear glass lid (connecting link)
  9. Drive cable plate
  10. Drive cable, front glass lid (connecting link)
  11. Control carriage, wind deflector
  12. Slide element

NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs.

If necessary, lightly grease guide channel.

NOTE: Drip molding carrier cannot be removed without incurring damage.

Break out tabs with a screwdriver and lever out carrier.

Installation:

Replace drip molding carrier and hook into place.

Sunroof

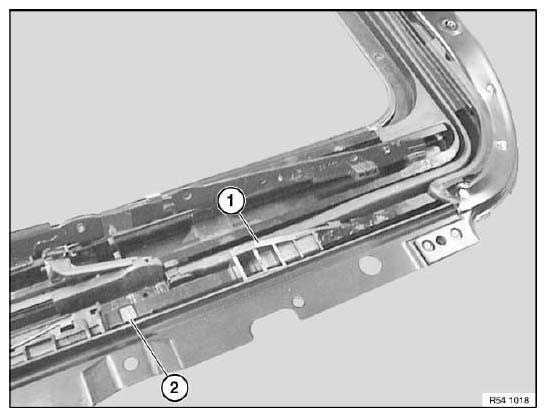

Fig. 16: [Identifying Tabs]

Sunroof

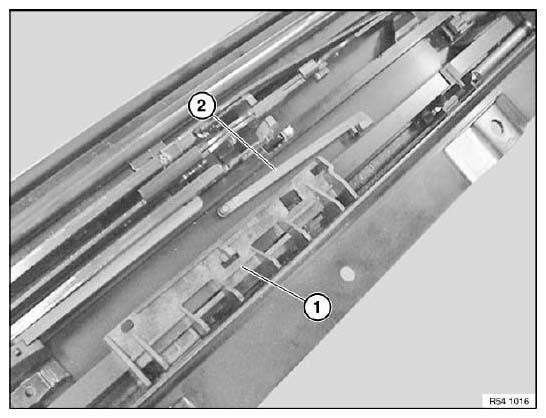

Fig. 17: Sliding Front Connecting Link

Slide front connecting link (1) towards rear past drive cable plate (2).

If front glass lid is installed, move mechanism with lid.

Sunroof

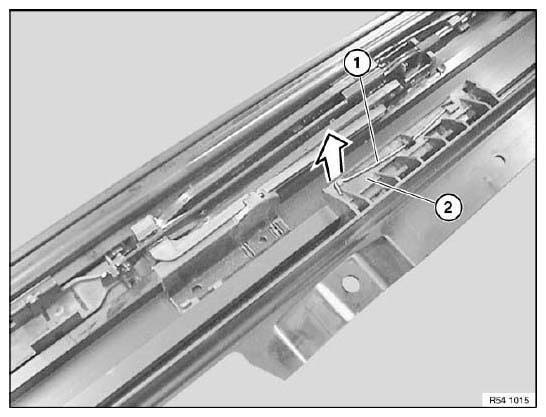

Fig. 18: Removing Retaining Bracket

Lever out retaining bracket (1) from drive cable plate (2).

Sunroof

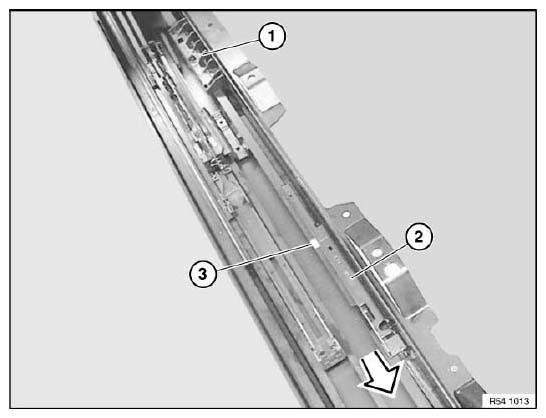

Fig. 19: Identifying Rear Connecting Line

Slide rear connecting line (2) with drive cable plate (1) towards rear until spring retainer (3) is exposed.

NOTE: Spring retainer (3) cannot be removed without incurring damage.

Lever out spring retainer (3) with screwdriver.

Installation:

Replace faulty spring retainer.

Continue sliding rear connecting link (2) with drive cable plate (1) towards rear out of guide channel and remove in succession.

Sunroof
Fig. 20: Identifying Drive Cable Plate

Installation:

Slide drive cable plate (1) up against drive cable.

Install locking lever (2) and lock retaining bracket.

Sunroof

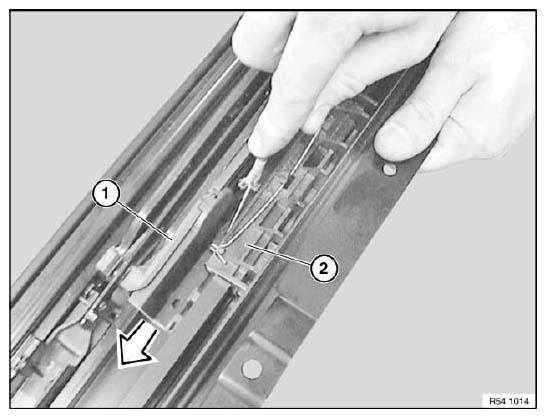

Fig. 21: Identifying Spring Retainer

Removing control carriage for wind deflector:

NOTE: Spring retainer (2) cannot be removed without incurring damage.

Lever out spring retainer (2) with screwdriver.

Installation:

Replace faulty spring retainer.

Pull control carriage (1) for wind deflector towards rear out of rail and remove.

NOTE: Check smooth and noise-free running of kinematics.

Check function.
