BMW X5: Replacing Fastener For Wind Deflector On Left Or Right

BMW X5 (G05) 2019-2024 Service & Repair Manual / Slide/Tilt Roof / Sunroof / Replacing Fastener For Wind Deflector On Left Or Right

Special tools required:

Sunroof

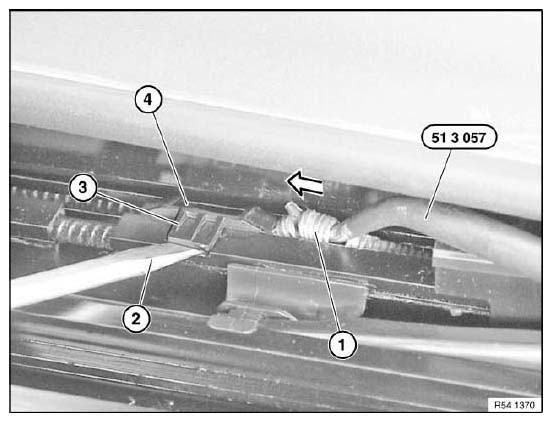

Fig. 27: Identifying Special Tools (51 3 057)

Insert special tool 51 3 057 in spring (1). See 51 3 050 TOOL.

Using a suitable tool (2), unlock catch (3) of fastener for wind deflector (4).

Slide fastener for wind deflector (4) and spring (1) with special tool 51 3 057 in direction of arrow up to opening in guide. See 51 3 050 TOOL.

IMPORTANT: Special tool 51 3 057 may only be removed from spring (1) after new fastener for wind deflector has been installed. See 51 3 050 TOOL.

Installation:

Make sure catch of fastener for wind deflector is correctly seated and engaged.

Feed centering element for wind deflector (1) in direction of arrow out of opening (2) in guide (3).

Sunroof
Fig. 28: Identifying Centering Element For Wind Deflector

Using a suitable tool (2), disengaged spring (1) of fastener for wind deflector (3) in direction of arrow.

Installation:

Sunroof
Fig. 29: Disengaging Spring Of Fastener For Wind Deflector

REMOVING AND INSTALLING/REPLACING SLIDER SET FOR FLOATING ROOFLINER

Necessary preliminary tasks:

IMPORTANT: Slider set can fall sideways out of guide rail.

Risk of damage to drag arm.

Pull slider set sideways out of guide rail.

Remove drag arm from front mechanism for floating roofliner:

  1. Turn drag arm downwards
  2. Disengage drag arm upwards

Sunroof
Fig. 30: Removing Drag Arm From Front Mechanism

Remove arm (1) towards rear and replace if necessary.

Sunroof
Fig. 31: Removing Arm

REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF

Necessary preliminary tasks:

Detach gaiter (1) from guide.

Installation:

Gaiter cannot be removed without incurring damage.

Replace gaiter.

Check that aluminum section inlay is firmly seated on guide.

Sunroof
Fig. 32: Detaching Gaiter From Guide

REMOVING AND INSTALLING FRONT GLASS SLIDE/TILT SUNROOF COVER

Necessary preliminary tasks:

NOTE: The following steps can be carried out inside the vehicle with the glass roof panel fully closed.

Open floating roofliner fully.

Make sure that grease at the ends of the rail do not come into contact with the roofliner.

Not necessary for replacement: Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

Remove and dispose of the Torx screws (1) securing the glass panel to the mechanism.

Installation:

Insert new Torx screws with Loctite and align washers to markings.

Tightening torque 54 12 2AZ.

Sunroof
Fig. 33: Identifying Torx Screws

IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof lid!

Lift out glass slide/tilt sunroof cover (1).

Installation:

Tape off installation area on left and right at roof aperture with fabric adhesive tape.

Install glass slide/tilt sunroof cover carefully (twist in) as seal can be damaged during installation.

Check glass slide/tilt sunroof cover for correct alignment and adjust if necessary.

Sunroof
Fig. 34: Lifting Out Glass Slide/Tilt Sunroof Cover

REMOVING AND INSTALLING REAR GLASS SLIDE/TILT SUNROOF COVER

NOTE: The following steps can be carried out inside the vehicle with the glass roof panel fully closed.

Open floating roofliner fully.

Make sure that grease at the ends of the rail do not come into contact with the roofliner.

Not necessary for replacement: Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

Remove and dispose of the Torx screws (1) securing the glass panel to the mechanism.

Installation:

Insert new Torx screws with Loctite and align washers to markings.

Tightening torque 54 12 2AZ.

Sunroof
Fig. 35: Identifying Torx Screws

IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof lid!

Lift out glass slide/tilt sunroof cover (1).

Installation:

Tape off complete edge area at roof aperture with fabric adhesive tape (risk of damage).

Install glass slide/tilt sunroof cover carefully (twist in) as seal can be damaged during installation.

Check glass slide/tilt sunroof cover for correct alignment and adjust if necessary.

Sunroof
Fig. 36: Lifting Out Glass Slide/Tilt Sunroof Cover
