BMW X5: Oil Cooler

FLUSHING OIL COOLER WITH LINES (AUTOMATIC TRANSMISSION)

Special tools required:

NOTE: Carry out the work steps listed when: Fitting a new or replacement transmission Flushing can only be carried out with the automatic transmission removed.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019.

Connect drain line 17 2 018.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to BMW Service Operating Fluids) through oil lines and oil cooler.

Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to BMW Service Operating Fluids).

Disconnect quick-release couplings, remove adapters.

NOTE: Dispose of flushing oil properly; do not under any circumstances reuse it.

Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z

Oil Cooler

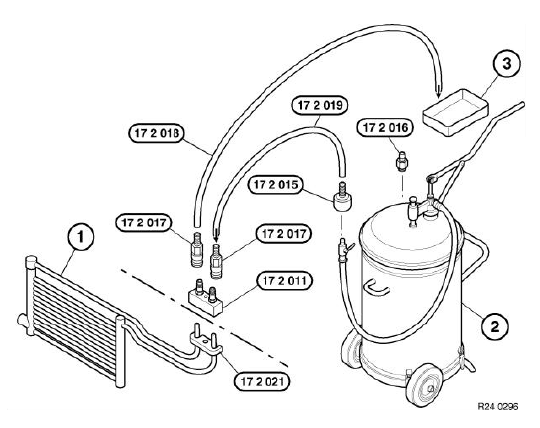

Fig. 25: Arrangement Of Flushing Device For Transmissions (A5S 310Z)

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z

Arrangement of flushing device for transmission A4S 310R

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

Oil Cooler

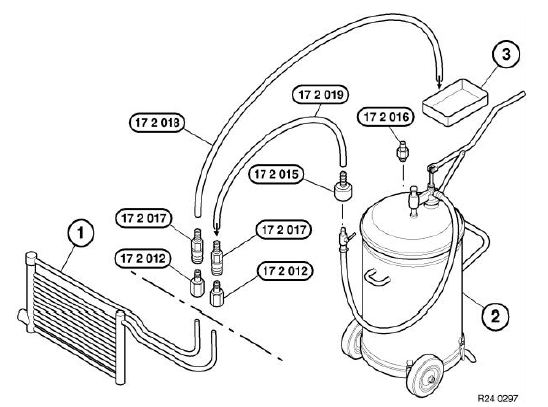

Fig. 26: Arrangement Of Flushing Device For Transmission (A4S 310R)

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

Arrangement of flushing device for transmission A4S 300J

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

Oil Cooler

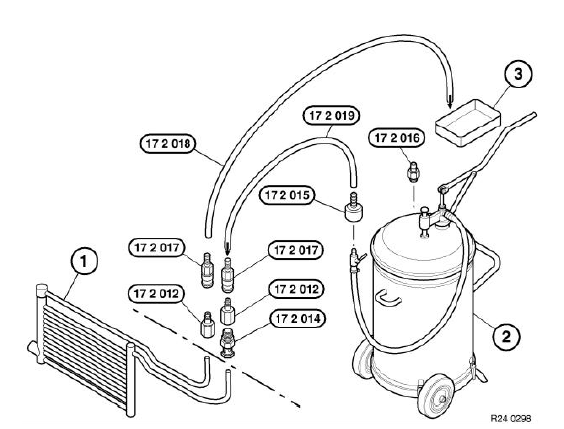

Fig. 27: Arrangement Of Flushing Device For Transmission (A4S 300J)

  1. Transmission-oil cooler with lines
  2. Oil collection unit
  3. Oil drip tray

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)
