BMW X5: Notes On Removing And Installing Low Profile Band Clamps

BMW X5 (G05) 2019-2024 Service & Repair Manual / Front Axle / Output Shaft / Notes On Removing And Installing Low Profile Band Clamps

Special tools required:

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

Front Axle

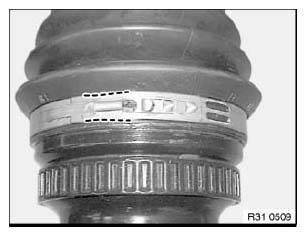

Fig. 128: Identifying Clamp

Removing:

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

Front Axle
Fig. 129: Identifying Movable Piece And Lug

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

Front Axle

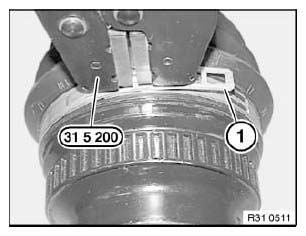

Fig. 130: Identifying Clamp And Special Tool

Assembly:

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

Front Axle

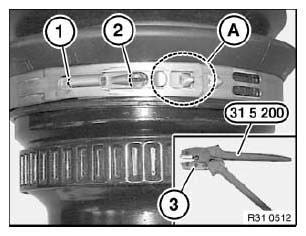

Fig. 131: Identifying Movable Piece And Lug

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

Front Axle

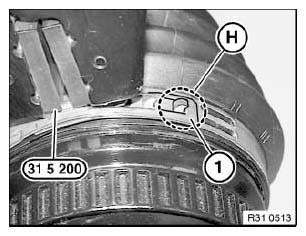

Fig. 132: Identifying Hook Fastener, Clamp And Special Tool
