BMW X5: Cargo cover
Safety information
Warning
Loose objects or devices with a cable connection to the vehicle, for instance mobile phones, can be thrown about the car's interior while driving, for instance in the event of an accident, braking or evasive maneuver. There is a risk of injury. Secure loose objects or devices with a cable connection to the vehicle in the car's interior.
Warning
A cargo cover that snaps back quickly can jam body parts or cause damage. There is a risk of injury or risk of damage to property. Do not let the cargo cover snap back into place.
Warning
An incorrectly inserted cargo cover can be thrown about the car's interior, such as in the event of an accident or a braking or evasive maneuver.
There is a risk of injury and risk of damage to property. Make sure the cargo cover is securely engaged in the brackets.
Closing the cargo cover
.png)

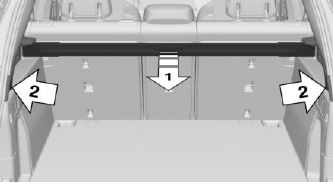

Pull out the cargo cover, arrow 1, and hook both sides into the brackets, arrow 2.
Removing the cargo cover
The cover can be removed to load bulky luggage.
.png)

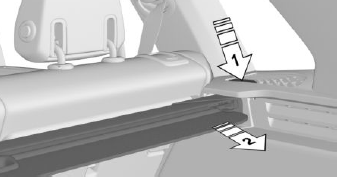

Press the release button, arrow 1, and pull the cargo cover out toward the rear, arrow 2.
Stowing the cargo cover
General information
The cargo cover can be stowed in the storage compartment under the cargo floor panel.
Without third seat row
1. Open the storage compartment on the left side.
Storage compartment on the left side.
2. Fold up the cargo floor panel.
3. Turn the cargo cover forward with the handle.

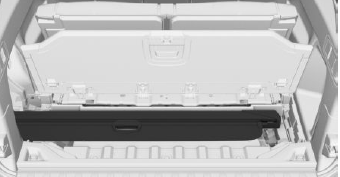

4. Stow the cargo cover on the left and lower it on the right side.
Make sure the cargo cover is positioned correctly in the right bracket.
.png)
5. Push the cargo floor down and close the storage compartment on the left side.
With third seat row
1. Open the storage compartment on the left side.
Storage compartment on the left side.
2. Fold up the cargo floor panel.

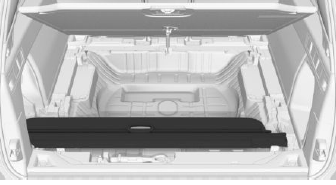

3. Stow the cargo cover on the left and lower it on the right side.
Make sure the cargo cover is positioned correctly in the right bracket.
.png)
4. Push the cargo floor down and close the storage compartment on the left side.
Inserting the cargo cover
Slide the cover forward horizontally into the two side brackets. Make sure that the cover audibly engages on both sides.
