BMW X5: Control Unit Box
REMOVING AND INSTALLING/REPLACING ELECTRONICS BOX
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION).
NOTE: Follow instructions for removing and installing electronic control units.
Necessary preliminary tasks:
- Read fault memory
- Disconnect negative battery cable
- Remove ELECTRONICS BOX FAN
- Remove DISTRIBUTION BOX (PASSENGER COMPARTMENT)
- Release control unit holder; if necessary, release CD changer
Release screws (arrows) behind sound insulation.
Disconnect wiring harness on engine compartment side on right.
Remove electronics box.
.png)
Fig. 80: Locating Electronics Box
Installation:
Make sure gasket (1) is correctly seated on electronics box.
Read fault memory.
.png)
Fig. 81: Identifying Gasket
REPLACING FAN FOR ELECTRONICS BOX (N62)
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION).
Necessary preliminary tasks:
- Switch off ignition.
- Follow instructions for disconnecting and connecting battery.
- Disconnect battery ground terminal.
- Remove right fresh air duct.
IMPORTANT: Follow instructions for removing and installing electronic control units.
Release screw (2).
Remove cover (1) of equipment box in direction of arrow towards right.
Installation:
Push on cover (1) of equipment box in direction of arrow towards left into holder (3).
.png)
Fig. 82: Detaching Cover Of Equipment Box
Disconnect plug connections (1 to 6).
Remove Valvetronic control unit, DME and integrated supply module.
.png)
Fig. 83: Identifying Plug Connection
Unlock plug connection (3) on fan for electronics box and disconnect.
Release screws (1) on control unit carrier (2).
Remove control unit carrier (2) towards top.
.png)
Fig. 84: Identifying Plug Connection And Control Unit Carrier
Release screws (1).
Remove fan (2) in direction of arrow.
.png)
Fig. 85: Removing Fan And Screws
Check function of DME.

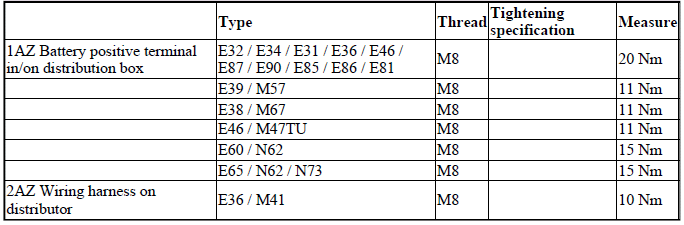

Engine Electrical System - Tightening Torques
IGNITION WIRES, SPARK PLUGS
SPARK PLUGS
TECHNICAL DATA - SPARK PLUGS
.png)
ELECTRONIC SWITCHING OR CONTROL UNIT
ELECTRONIC SHIFT UNITS OR CONTROL UNITS
TECHNICAL DATA - ELECTRONIC SHIFT UNITS OR CONTROL UNITS
.png)
ALTERNATOR WITH DRIVE AND MOUNT
ALTERNATOR WITH DRIVE AND MOUNTING PARTS

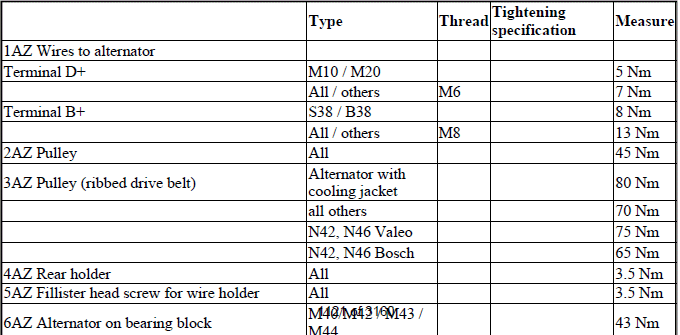

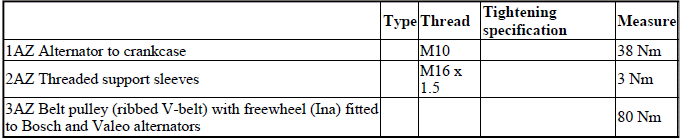

TECHNICAL DATA - ALTERNATOR WITH DRIVE AND MOUNTING PARTS
.png)
.png)
ALTERNATOR WITH DRIVE AND MOUNTING PARTS
TECHNICAL DATA - ALTERNATOR WITH DRIVE AND MOUNTING PARTS
.png)
REGULATOR
GOVERNOR
TECHNICAL DATA - GOVERNOR
.png)
STARTER WITH MOUNTING
STARTER AND MOUNTING PARTS

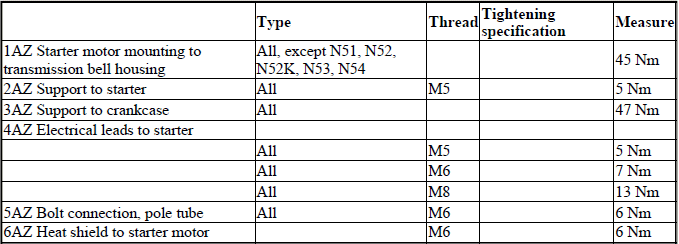

TECHNICAL DATA - STARTER AND MOUNTING PARTS
.png)
STARTER MOTOR WITH MOUNTING
TECHNICAL DATA - STARTER MOTOR WITH MOUNTING
.png)
STARTER LEAD
STARTER CABLE

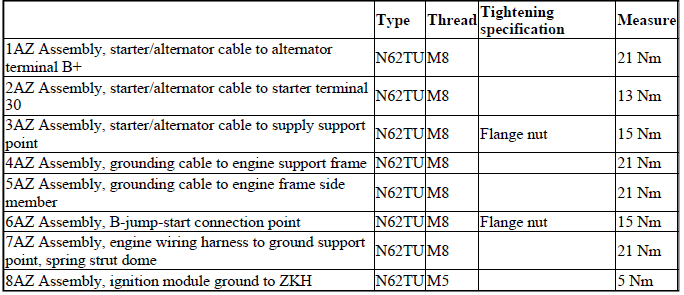

TECHNICAL DATA - STARTER CABLE
.png)
WIRES TO STARTER
TECHNICAL DATA - WIRES TO STARTER
.png)
OIL PRESSURE/OIL TEMPERATURE GAUGE
OIL PRESSURE, OIL TEMPERATURE, OIL LEVEL DISPLAY

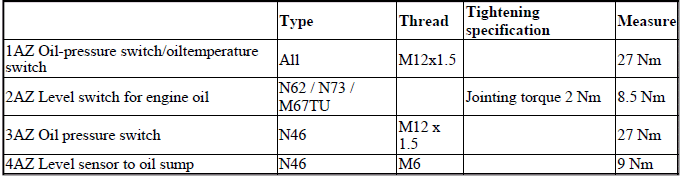

TECHNICAL DATA - OIL PRESSURE, OIL TEMPERATURE, OIL LEVEL DISPLAY
.png)
COOLANT TEMPERATURE

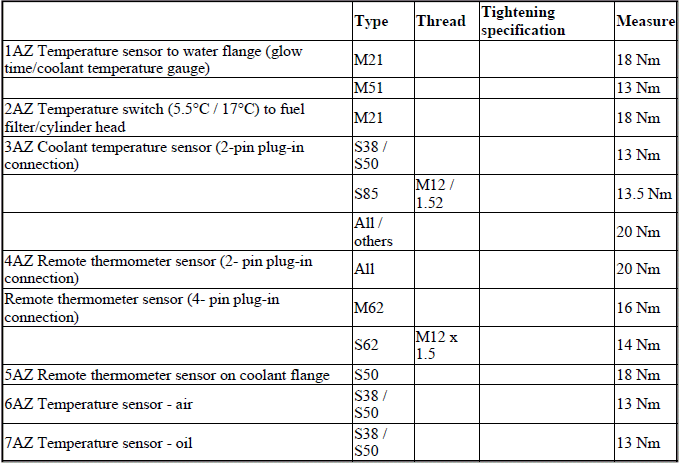

TECHNICAL DATA - COOLANT TEMPERATURE
.png)
SENSOR FOR CONTROL UNIT
TECHNICAL DATA - SENDERS FOR CONTROL UNIT

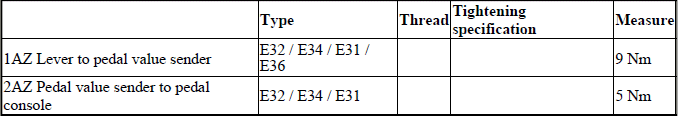

.png)
CONTROL UNIT BOX
CONTROL UNIT HOUSING

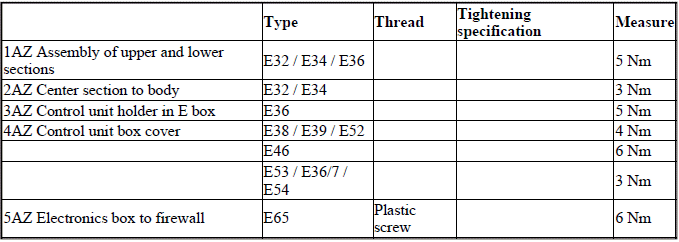

TECHNICAL DATA - CONTROL UNIT HOUSING
.png)
