BMW X5: Transmission Suspension
REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING
Special Tools Required:
- 22 1 016 22 1 010 SET OF TOOLS
- 22 1 017 22 1 010 SET OF TOOLS
- 22 1 101 22 1 100 FIXTURE
- 22 1 102 22 1 100 FIXTURE
- 22 1 103 22 1 100 FIXTURE
- 33 4 465 33 4 460 SET OF TOOLS
Necessary preliminary tasks:
- Remove cross-member.
Place special tool 22 1 016. Refer to 22 1 010 SET OF TOOLS on opening (1) and insert screw (2) until hand-tight against housing.
Pull out rubber mount with special tools 22 1 101/ 33 4 465. Refer to 22 1 010 SET OF TOOLS and nut (22 1 017)22 1 010 SET OF TOOLS.
.png)
Fig. 7: Identifying Rubber Mount With Special Tools (22 1 101, 33 4 465)
Installation:
Arrow on rubber mount must point to arrow on housing.
Coat housing bore and rubber mount with Circolight, refer to BMW Parts Service.
.png)
Fig. 8: Identifying Rubber Mount And Housing Bore Center Line
Insert special tool 22 1 102 with pins into openings of rubber mount.
.png)
Fig. 9: Identifying Special Tool (22 1 102)
Install rubber mount with special tools 22 1 102/22 1 103/33 4 465 and 22 1 017.
.png)
Fig. 10: Identifying Rubber Mount With Special Tools (22 1 102, 22 1 103, 33
4 465)
REPLACING CROSS-MEMBER FOR TRANSMISSION MOUNTING
Special Tools Required:
- 00 2 030 00 2 030 UNIVERSAL HYDRO-LIFTER BASIC UNIT
- 23 0 132 23 TRANSMISSION DESIGNATIONS
- 23 4 050 23.. UNIVERSAL TRANSMISSION BRACKET
Necessary preliminary tasks:
- Remove underbody protection
- Remove heat shields
- Remove exhaust system
Supporting Transmission:

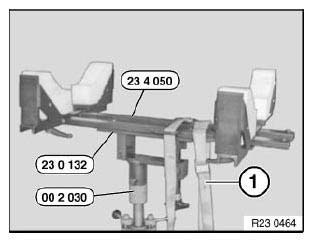

Support with special tools 23 4 050, 23 0 132 and 00 2 030 00 2 030 UNIVERSAL HYDRO-LIFTER BASIC UNIT.
Secure transmission with tensioning strap (1).
Tasks are described in TRANSMISSION BRACKET.
.png)
Fig. 11: Identifying Special Tools (23 4 050, 23 0 132) And (00 2 030)
Release screws.
Tightening torque 22 32 4AZ 22 32 TRANSMISSION MOUNTS. Release screw (1).
Tightening torque 22 32 5AZ 22 32 TRANSMISSION MOUNTS. Remove cross-member.
.png)
Fig. 12: Identifying Screw
