BMW X5: Shelf

Note: With mounting material.

SI number: 0 01 00 (549)

Order number: 00 0 250

Shelf

Maintenance & General Information

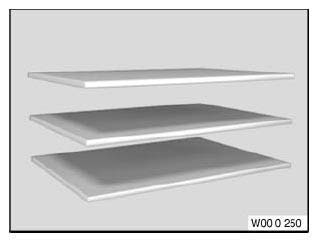

Fig. 29: Identifying Shelf (00 0 250)

DRAWER BLOCK

Note: With 5 lockable drawers

SI number: 0 01 00 (549)

Order number: 00 0 260

Drawer block

Maintenance & General Information

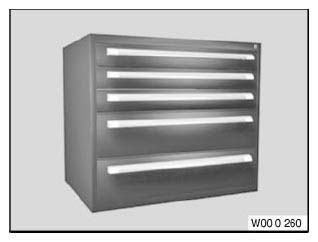

Fig. 30: Identifying Drawer Block (00 0 260)

REAR PANEL (2 PCS.)

Note: For sealing the rear panel (height 2 m x width 1 m) during free erection of a special tool cabinet.

SI number: 0 01 00 (549)

Order number: 00 0 270

Rear panel (2 pcs.)

FILM SHEET AND HOOK SETS FROM SPECIAL TOOL BOARD VII

In conjunction with: 00 0 224 or appropriate number 00 0 241

Note: For retrofitting onto special tool boards. NOTE: Each film with hook set is always supplied in accordance with the current status of the special tools. Up to three films can be stuck onto a large special tool board.

Order number: 00 0 280

Film sheet and hook sets from special tool board VII

Consisting of:

1 = 00 0 281 Film sheet and hook set

Note: For fields A/B/C - 41 and 42

2 = 00 0 282 Film sheet and hook set

Note: For fields A/B/C - 43 and 44

Maintenance & General Information
Fig. 31: Identifying Film Sheet & Hook Sets From Special Tool Board VII (00 0 280)

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Model series: E39 - engine: M57

Order number: 00 0 333

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Engine: S62

Order number: 00 0 334

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Engine: S62 (Part 2)

Order number: 00 0 335

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Engine: M67

Order number: 00 0 336

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Transmission: F-transmission

Order number: 00 0 337

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Model series: E53

Order number: 00 0 338

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Special tools 24 4 137, 33 3 030, 33 3 040

Order number: 00 0 339

Supplementary film/hook set

SUPPLEMENTARY FILM/HOOK SET

Note: For mechanical tools in special tool cabinet - Engine: S54

Order number: 00 0 341

Supplementary film/hook set

SUPPLEMENTARY FILM AND HOOK SET

Note: For mechanical tools in special tool cabinet E65/M57TU, M67

Order number: 00 0 342

Supplementary film and hook set

FILM AND HOOK SET

Note: For mechanical tools in special tool cabinet E65, N73

Order number: 00 0 343

Film and hook set

FILM AND HOOK SET

Note: For mechanical tools in special tool cabinet R50, W17

Order number: 00 0 344

Film and hook set

FILM AND HOOK SET

Order number: 00 0 345

Film and hook set

FILM AND HOOK SET

Order number: 00 0 346

Film and hook set

FILM AND HOOK SET

Order number: 00 0 347

Film and hook set

FILM AND HOOK SET

Order number: 00 0 348

Film and hook set

FILMS/HOOK SET E90

Order number: 00 0 354

Films/hook set E90

FILMS/HOOK SET

Note: 61 6 100, 61 6 110

Order number: 00 0 355

Films/hook set

FILMS/HOOK SET

Note: 23 0 320

Order number: 00 0 356

Films/hook set

FILMS/HOOK SET

Note: For 33 4 285

Order number: 00 0 357

Films/hook set

FILMS/HOOK SET

Order number: 00 0 358

Films/hook set

SUPPLEMENTARY FOILS + HOOKS FOR 24 2 354 AND 24 4 166

Order number: 00 0 359

Supplementary foils + hooks for 24 2 354 & 24 4 166

SUPPLEMENTARY FILMS/HOOKS FOR N43, N47

Order number: 00 0 361

Supplementary films/hooks for N43, N47

FILM SET 1 + 2 FOR E87

Order number: 00 0 415

Film set 1 + 2 for E87

FILM SET CABLE CABINET 1 FOR E90

Order number: 00 0 416

Film set cable cabinet 1 for E90

FILM SET CABLE CABINET 2

Order number: 00 0 418

Film set cable cabinet 2

CROSS-MEMBER/SUB-NO.

Note: Reserved for consecutive sub-no. crossmember 00 0 200

SI number: 1 10 02 (907)

Order number: 00 0 450

Cross-member / sub-no.

SPECIAL TOOL CABINET, LENGTH 6 M, COMPLETE CURRENT RANGE OF EQUIPMENT

Note: Range of equipment comprises: - Base frame - Films - Hooks - 5 large special tool boards - 4 small special tool boards Accessories such as storage shelves (00 0 250), drawer blocks (00 0 260) and rear panels (00 0 270) must be ordered separately.

SI number: 1 10 04 (092)

Order number: 00 1 000

Special tool cabinet, length 6 m, complete current range of equipment.

Maintenance & General Information
Fig. 32: Identifying Special Tool Cabinet, Length 6 M (00 1 000)

SPECIAL TOOL CABINET, LENGTH 4 M AND 2 M, COMPLETE CURRENT RANGE OF EQUIPMENT

Note: Consisting of tool cabinet 4 m and 2 m. All boards covered with film, hook set and folding index with list.

Accessories such as storage shelves (00 0 250), drawer blocks (00 0 260) and rear panels (00 0 270) must be ordered separately.

Order number: 00 1 010

Special tool cabinet, length 4 m and 2 m, complete current range of equipment.

E87 FILM AND HOOK SET

Note: E87

Order number: 00 1 140

E87 film and hook set

Consisting of:

1 = 00 1 141 Film sheet

2 = 00 1 142 Hook set

N 52 FILM AND HOOK SET

Note: N52

Order number: 00 1 150

N 52 film and hook set

Consisting of:

1 = 00 1 151 Film sheet

2 = 00 1 152 Hook set

FILM AND HOOK SET FOR S85

Note: (for action tools)

SI number: 1 12 05 (196)

Order number: 00 1 160

Film and hook set for S85

FILM S85

Order number: 00 1 161

Film S85

HOOK SET S85

Order number: 00 1 162

Hook set S85

FILM AND HOOK SET FOR S85

Note: (for store tools)

SI number: 1 12 05 (196)

Order number: 00 1 170

Film and hook set for S85

FILM S85

Order number: 00 1 171

Film S85

HOOK SET S85

Order number: 00 1 172

Hook set S85

TOOL CABINET, USA VERSION, COMPLETE

Note: Consisting of: - Tool cabinet 4 m - All boards covered with film, USA version - including hook set - including lighting

Order number: 00 1 300

Tool cabinet, USA version, complete

Consisting of:

1 = 00 1 301 2 m tool cabinet USA basic version

Note: Consisting of: - Tool cabinet 2 m - Large bright-finish board - including lighting

2 = 00 1 302 2 m tool cabinet USA add-on version

Note: Consisting of: - Tool cabinet 2 m - Large bright-finish board - including lighting

TOOL BOARDS, COMPLETE, USA VERSION

Note: Consisting of: - 3 large tool boards, covered with film - including hook set - including wall mounting

Order number: 00 1 310

Tool boards, complete, USA version

FILM SET, COMPLETE, USA VERSION

Order number: 00 1 320

Film set, complete, USA version

Consisting of:

1 = 00 1 321 Film no. 1 USA version

2 = 00 1 322 Film no. 2 USA version

3 = 00 1 323 Film no. 3 USA version

4 = 00 1 324 Film no. 4 USA version

5 = 00 1 325 Film no. 5 USA version

6 = 00 1 326 Film no. 6 USA version

7 = 00 1 327 Film no. 7 USA version

8 = 00 1 328 Film no. 8 USA version

9 = 00 1 329 Film no. 9 USA version

FILM NO. 10 USA VERSION

Order number: 00 1 331

Film no. 10 USA version

FILM NO. 11 USA VERSION

Order number: 00 1 332

Film no. 11 USA version

FILM NO. 12 USA VERSION

Order number: 00 1 333

Film no. 12 USA version
