BMW X5: Hook Set

HOOK SET, COMPLETE, FOR 00 1 300, USA VERSION

Order number: 00 1 340

Hook set, complete, for 00 1 300, USA version

Consisting of:

1 = 00 1 341 Hook set for film no. 1 USA-Version

2 = 00 1 342 Hook set for film no. 2 USA version

3 = 00 1 343 Hook set for film no. 3 USA version

4 = 00 1 344 Hook set for film no. 4 USA version

5 = 00 1 345 Hook set for film no. 5 USA version

6 = 00 1 346 Hook set for film no. 6 USA version

7 = 00 1 347 Hook set for film no. 7 USA version

8 = 00 1 348 Hook set for film no. 8 USA version

9 = 00 1 349 Hook set for film no. 9 USA version

HOOK SET FOR FILM NO. 10 USA VERSION

Order number: 00 1 351

Hook set for film no. 10 USA version

HOOK SET FOR FILM NO. 11 USA VERSION

Order number: 00 1 352

Hook set for film no. 11 USA version

UNIVERSAL HYDRO-LIFTER BASIC UNIT

In conjunction with: 00 2 040, 23 0 040, 23 0 130, 24 0 170, 24 5 300, 25 5 350, 27 1 030, 33 4 420, 51 3 280

Note: Chassis and hydraulic jack - For removing and installing rear axle carriers and transmissions Also for convertible top take-up supports E85 and E64.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1, RR2

SI number: 1 05 90 (207)

Order number: 00 2 030

Universal hydro-lifter basic unit

Consisting of:

  1. 00 2 031 Adapter for transmission brackets

Note: Model series: E30, E31, E32, E34, E36

In conjunction with: 23 0 000, 24 0 130

Maintenance & General Information
Fig. 33: Identifying Universal Hydro-Lifter Basic Unit (00 2 030)

BASIC TAKE-UP FIXTURE

In conjunction with: 00 2 030, 33 3 270, 33 3 290, 33 3 300, 33 4 220, 33 4 230

Note: For removing and installing rear axle carriers, without pillar guide and lift hoist.

Series: E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E87, E90, E91, E92, E93, R56, RR1, RR2

Storage location: Single

SI number: 1 05 90 (207)

Order number: 00 2 040

Basic take-up fixture

Consisting of:

  1. 00 2 041 Base frame
  2. 00 2 042 Take-up fixtures, side

Maintenance & General Information

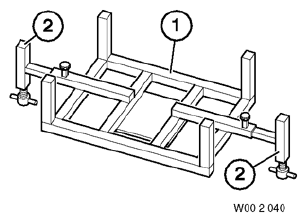

Fig. 34: Identifying Basic Take-Up Fixture (00 2 040)

TORQUE WRENCH, ADJUSTABLE FROM 1 TO 36 NM

Note: For tightening ZF selector units and for adjusting brake bands BW65

Transmission: BW 65

Order number: 00 2 050

Torque wrench, adjustable from 1 to 36 Nm

Consisting of:

  1. 00 2 051 Torque wrench without socket ratchet
  2. 00 2 052 Socket ratchet

Maintenance & General Information
Fig. 35: Identifying Torque Wrench (00 2 050)
