BMW X5: Assembly Stand With Universal Flange
Note: For accommodating engines from S85
Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N51, N52, N53, N54, N62, N62TU, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17
SI number: 01 25 04 (155)
Order number: 00 2 300
Assembly stand with universal flange
Consisting of:
- 00 2 301 Assembly stand
- 00 2 302 Universal flange
- 00 2 303 Crank
- 00 2 304 Protection hood
- 00 2 305 Storage for small parts
- 00 2 306 Molded tray, rear
- 00 2 307 Oil drip tray
- 00 2 308 Molded tray, front
- 00 2 309 Wheel, front (without stop)
- 00 2 311 Wheel, rear (with stop)
- 00 2 312 Set of rippled mats
.png)

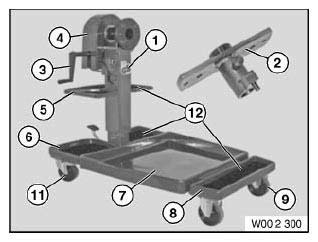

Fig. 43: Identifying Assembly Stand With Universal Flange (00 2 300)
SUPPORT ARM WITH MOUNTING PLATE
In conjunction with: 00 2 300
Note: For accommodating older 8 and 12-cylinder engines
Engine: M67, M67TU, N62, N62TU, N73, S85
SI number: 01 25 04 (155)
Order number: 00 2 320
Support arm with mounting plate
Consisting of:
- 00 2 321 Support arm
- 00 2 322 Mounting plate
.png)
Fig. 44: Identifying Support Arm With Mounting Plate (00 2 320)
