BMW X5: Instructions For Working On Cooling System

WARNING: Danger of scalding! Work on the cooling system should only be carried out when the engine has cooled down.

IMPORTANT: Wear protective gloves and goggles.

IMPORTANT: Lifetime coolant filling: Never reuse used coolant.

When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled.

In the case of other removal work involving the draining of partial quantities of coolant, replace these quantities which have been drained with new coolant.

IMPORTANT: Open cooling system only when it has cooled down.

Opening the cooling system while hot can result in air entering the system.

This can cause overheating with permanent damage to the engine.

IMPORTANT: When working on the oil, coolant or fuel circuit, protect the alternator against contamination.

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

IMPORTANT: Do not fill coolant expansion tank over MAX level as overfilling will cause the coolant to overflow. This may give rise to traces of residual coolant on the expansion tank or in the engine compartment and wrongly suggest possible leakages.

Recycling

Catch and dispose of drained coolant.

Observe country-specific waste-disposal regulations.

NOTE: Tightening torque, hose clamps.

Coolant Checking Cooler Line
Fig. 1: Identifying Hose Clamps

Instructions for disassembly/assembly of coolant hose fast-release couplings

Disassembly of fast-release coupling

Withdraw lock (1/2), disconnect hose.

Coolant Checking Cooler Line
Fig. 2: Identifying Withdraw Lock

Installation:

Check O-rings (1).

Do not coat O-rings (1) with antiseize agent.

Coolant Checking Cooler Line
Fig. 3: Identifying O-Rings

Assembly of fast-release coupling

Press in lock (1) before installing fast-release coupling.

Push on hose.

Fast-release coupling must clearly snap audibly into place.

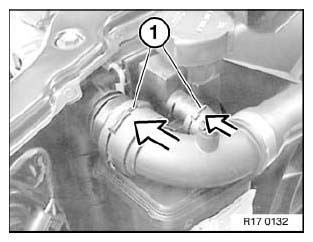

Coolant Checking Cooler Line
Fig. 4: Identifying Lock
