BMW X5 (G05) 2019-2025 Service & Repair Manual / Engine Electrical System / Engine Electrical System V8 (N62TU) / Ignition Wires, Spark Plugs
FIRING ORDER
.png)
.png)

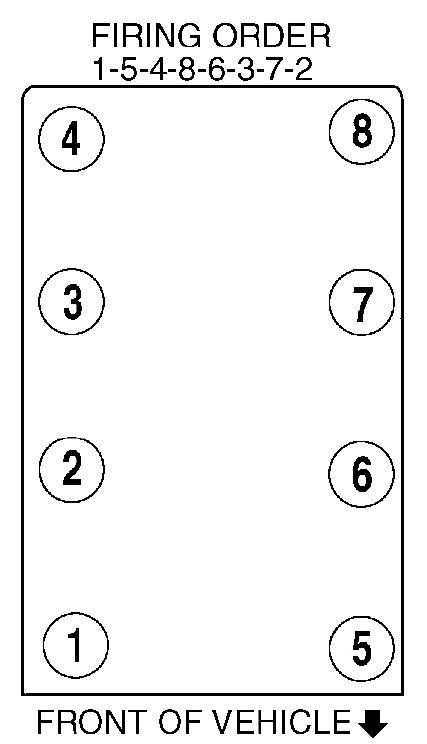

Fig. 3: Firing Order (V8)
REPLACING ALL SPARK PLUGS (N62, N62TU)
Special tools required:
- 12 1 171
- 12 1 172
Necessary preliminary tasks:
- Switch off ignition
- Remove all IGNITION COILS.
Unscrew spark plugs with special tool 12 1 171.
Installation:
Tighten down spark plugs with special tool 12 1 171 and special tool 12 1 172 (torque limiter).
Without special tool 12 1 172, observe tightening torque.
Tightening torque 12 12 1AZ.
.png)
Fig. 4: Tightening Down Spark Plugs With Special Tool 12 1 171 And 12 1 172
