BMW X5: Front Axle + Steering: Wheel/Chassis Alignment Check Must Be Carried
Out After The Following Work

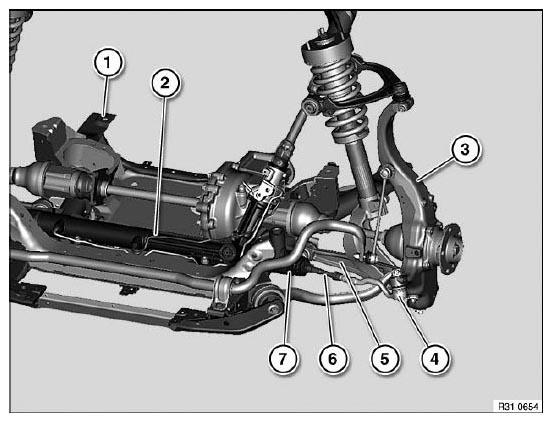

Fig. 3: Identifying Front Axle Components
A wheel/chassis alignment check must be carried out after the following work:
- Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Lower control arm to front axle carrier
- Tie rod end to tie rod
- Replacement of following parts:
- Front axle carrier
- Steering gear
- Swivel bearing
- Tie rod end
- Lower control arm / rubber mount
- Tie rod
- Gaiter (if the tie rod end has to be screwed off)
OVERVIEW OF STEERING

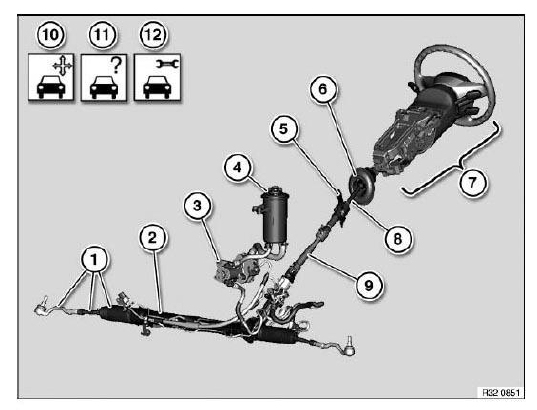

Fig. 4: Overview Of Steering
- Tie rod end/tie rod/gaiter
- Power steering gear
- Vane pump
- Oil container
- Bearing plate
- Sleeve
- Overview of steering (interior)
- Steering spindle middle section
- Steering spindle lower section
- Adjustment work
- Testing
- Troubleshooting
OVERVIEW OF ACTIVE FRONT STEERING

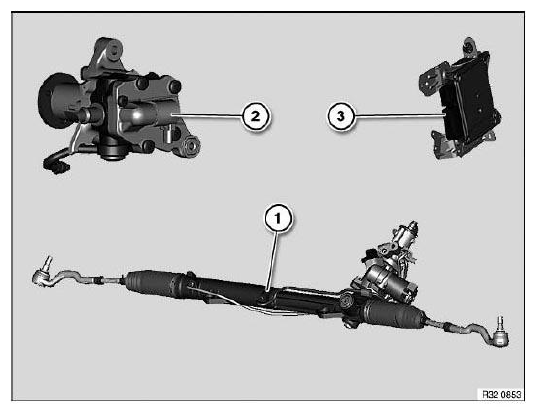

Fig. 5: Overview Of Active Front Steering
- Power steering gear
- Eco valve (on power steering pump)
- Control unit
OVERVIEW OF STEERING (INTERIOR)

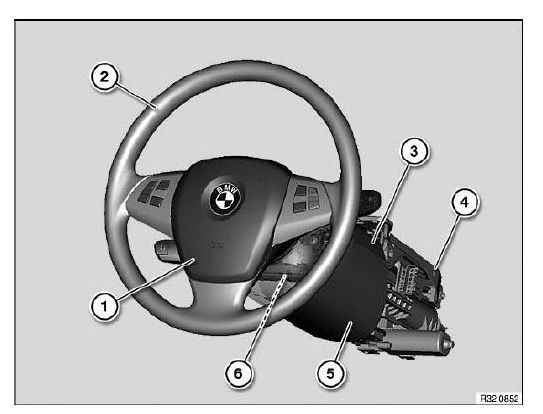

Fig. 6: Overview Of Steering (Interior)
- Airbag unit
- Steering wheel
- Upper steering column casing
- Steering column
- Lower steering column casing
- Steering angle sensor
