BMW X5: Stabilizer Bar
REMOVING AND INSTALLING/REPLACING REAR STABILIZER
Necessary preliminary tasks:
- Remove both stabilizer links from stabilizer.
Release screws (1).
Replacement only: Remove both rubber mounts from stabilizer.
Turn stabilizer (2) and remove sideways.
Installation:
Check both rubber mounts for damage , replace if necessary.
Align stabilizer centrally.
Tightening torque.
.png)
Fig. 136: Identifying Screws And Stabilizer
REPLACING BOTH RUBBER MOUNTS FOR STABILIZER MOUNTING
Necessary preliminary tasks:
- Remove stabilizer from rear axle carrier.
IMPORTANT: Circo Light must not be used between stabilizer and rubber mount!
Remove retaining bracket (1) and rubber mount (2) from stabilizer.
Installation:
Coat rubber mount with Circo Light to install retaining bracket.
.png)
Fig. 137: Identifying Retaining Bracket And Rubber Mount
Installation:
Keep stabilizer clean and free of oil and grease.
Mount rubber mount (1) by way of slot (2) as pictured on stabilizer.
.png)
Fig. 138: Identifying Rubber Mount Aligning Slot
REPLACING STABILIZER LINKS FOR STABILIZER
IMPORTANT: Observe safety when raising the vehicle
Unscrew nuts (1).
Remove stabilizer link (2).
Installation:
Replace self-locking nuts.
Tightening torque.
.png)
Fig. 139: Identifying Nuts And Stabilizer Link
Troubleshooting

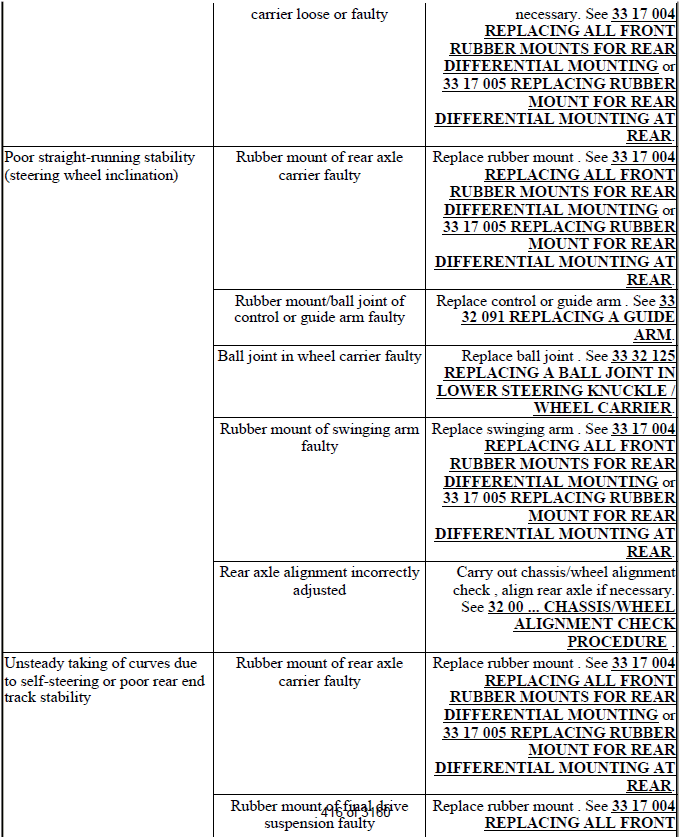

REAR AXLE TROUBLESHOOTING

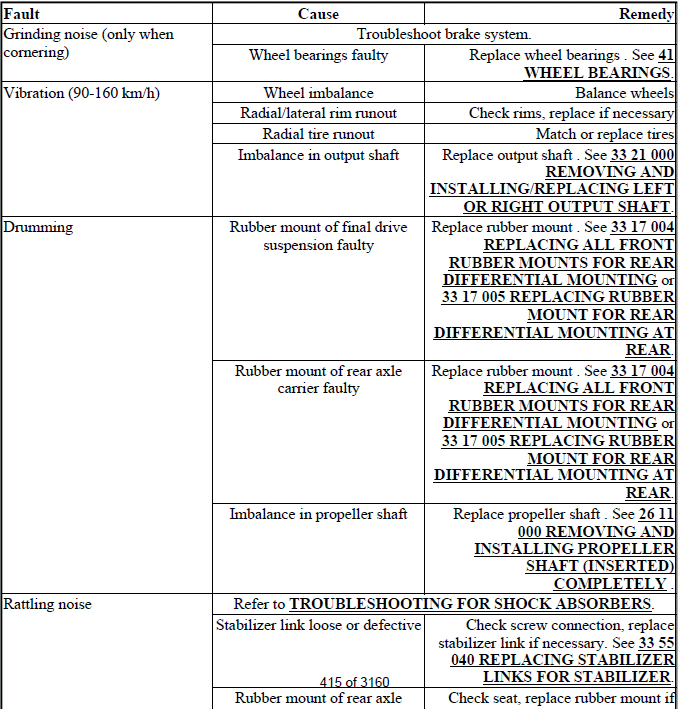

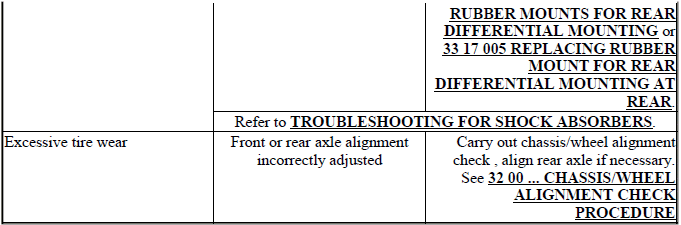

TROUBLESHOOTING CHART FOR SHOCK ABSORBERS
.png)
.png)
.png)

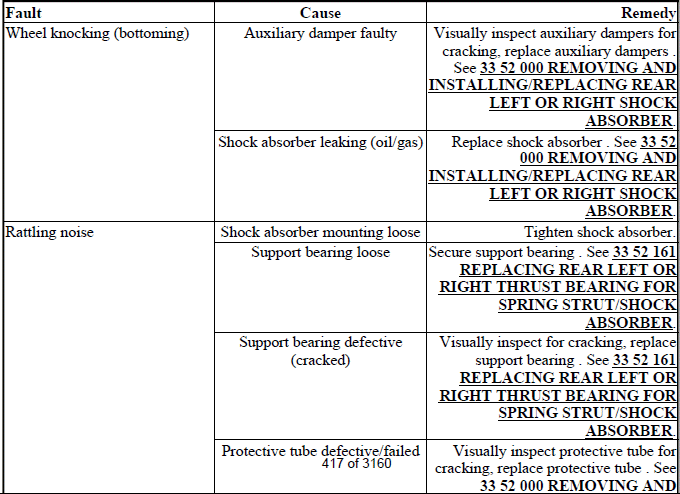

TROUBLESHOOTING SHOCK ABSORBER
Read and comply with Information on replacing shock absorbers.

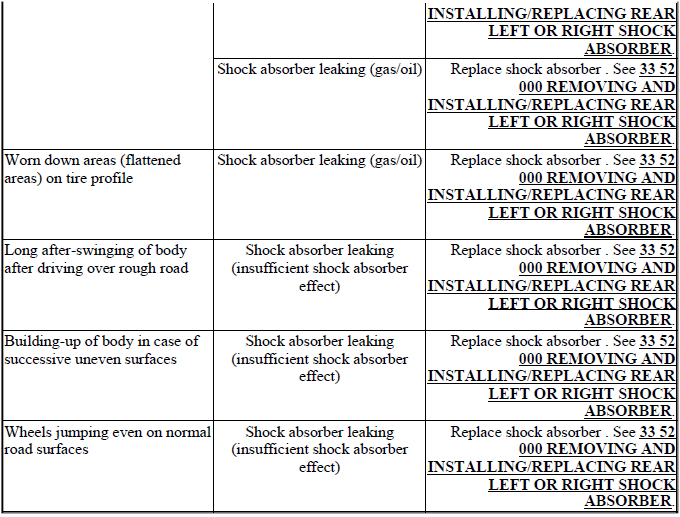

TROUBLESHOOTING CHART FOR SHOCK ABSORBERS
.png)
.png)
