BMW X5: DTC Dynamic Traction Control
Principle
Dynamic Traction Control (DTC) is a version of the Dynamic Stability Control (DSC) where drive power is optimized.
The system ensures maximum drive power on unusual road conditions, for instance unplowed snow covered roads, or loose road surfaces, but with somewhat limited driving stability.
General information
When DTC is activated, the vehicle has maximum traction. Driving stability is limited during acceleration and when driving in curves.
You may find it useful to briefly activate DTC in the following situations:
- When driving in slush or on uncleared, snowcovered roads.
- When driving off from deep snow or loose ground.
- When driving with tire chains.
Overview

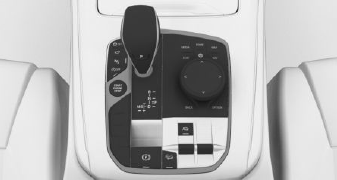

Button in the vehicle
.png)
.png)
DSC OFF
Activating/deactivating DTC
Activating DTC
Press the button.
TRACTION is displayed in the instrument cluster and the indicator light for DSC OFF lights up.
Deactivating DTC
Press the button again.
TRACTION and the DSC OFF indicator light turn off.
Display
Display in the instrument cluster
If DTC is activated, TRACTION is displayed in the instrument cluster.
Indicator/warning lights
.png)
The indicator light lights up:
DTC is activated.
Automatic program change
In certain situations, the Dynamic Stability Control (DSC) is activated automatically:
- If Active Cruise Control with Stop&Go function ACC is activated.
- On a brake intervention by the Intelligent Safety systems.
- The vehicle has a flat tire.
