BMW X5: Assisted Driving View
Principle
Depending on the equipment, information about the driver assistance systems is displayed in an animated surrounding area of the vehicle when driver assistance is active.
General information
Depending on the settings, Assisted Driving View can be displayed permanently or temporarily with active driving assistance in the instrument cluster.
Safety information
Warning
The system cannot serve as a substitute for the driver's personal judgment in assessing visibility and traffic situation. There is a risk of accident.
Adjust driving style to traffic conditions. Watch traffic closely and actively intervene where appropriate.
Settings
Permanent display
1. "CAR".
2. "Settings".
3. "Displays".
4. "Instrument panel".
5. "Central display area".
6. "Assisted Driving View".
Temporary display
1. "CAR".
2. "Settings".
3. "Displays".
4. "Instrument panel".
5. "Display Assisted Driving View when Driver Assistance is active".
Display
.png)

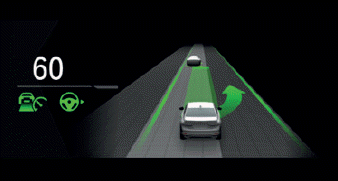

Example: the indicator/warning lights for the Active Cruise Control with Stop & Go function ACC and the Lane Change Assistant indicate a lane change to the next lane. At the same time, the lane change to the next lane is shown with animation in the Assisted Driving View.
System limits
The system's detection capability is limited. The system may indicate something wrong.
Only objects that are detected by the system are taken into account.
Additional information:
- Cameras
- Radar sensors
