BMW X5: Torque Angle Measuring Dial
Minimum set: Mechanical tools
Note: For torsion angle tightening of cylinder head bolts (all engines) And reinforcement plate front axle carrier E46
Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E68, E70, E81, E82, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1, RR2
Storage location: A12
Order number: 00 9 120
Torque angle measuring dial
.png)
Fig. 56: Identifying Torque Angle Measuring Dial (00 9 120)
MAGNET WITH 1/2" CONNECTION
Minimum set: Mechanical tools
In conjunction with: 00 9 120
Note: For securing angle-of-rotation disk 00 9 120 to body.
Series: E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E86, E87, E90, E91, E92
SI number: 1 17 04 (130)
Order number: 00 9 130
Magnet with 1/2" connection
.png)

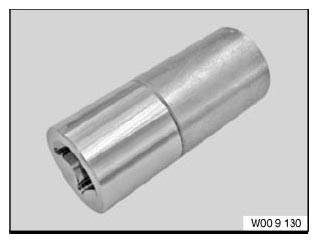

Fig. 57: Identifying Magnet With 1/2" Connection (00 9 130)
RIVETING TOOL
Note: Is replaced by 00 2 240!
Series: All models
Order number: 00 9 290
Riveting tool
