BMW X5: Safety Instructions For Handling Oil
BMW X5 (G05) 2019-2026 Service & Repair Manual / Steering And Wheel Alignment / Electronic Chassis Alignment / Safety Instructions For Handling Oil
WARNING: Danger of poisoning if oil is ingested/absorbed through the skin! Risk of injury if oil comes into contact with eyes and skin!
Recycling:
Observe country-specific waste-disposal regulations.
Measures if oil is unintentionally released:
- Personal precautionary measures: Danger of slipping! Keep non-involved persons away from the work area. Wear personal protective clothing/equipment.
- Environmental protection measures: Prevent oil from draining into drain channels, sewerage systems, pits, cellars, water and the ground.
- Limiting spread: Use oil blocks to prevent the surface spread of oil.
- Cleaning procedure: Bind and dispose of escaped oil with nonflammable absorbents.
NOTE: Do not flush oil away with water or aqueous cleaning agents.
RAISING VEHICLE WITH TROLLEY JACK
IMPORTANT: Observe the following trolley-jack-related instructions:
- Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
- Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
- Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
.png)

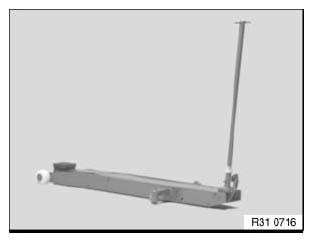

Fig. 1: Identifying Trolley Jack
WARNING: The vehicle may be raised with a trolley jack only at the following jacking points!
- Car jacking point
- Side car jacking points
- Rear differential
Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!
.png)
Fig. 2: Identifying Car Jacking Point, Side Car Jacking Points And Rear
Differential
