BMW X5: Removing And Installing/Replacing Rear Left Or Right Seat Belt
Necessary preliminary tasks:
- Remove rear seat.
Version with 3rd seat row only:
- Fold rear seat forwards
- Remove adapter plate.
Release screw (1) on end fitting.
Installation:
Replace screw.
Tightening torque.
.png)
Fig. 9: Identifying Seat Belt Screw
Release screw (1).
Installation:
Replace screws.
Tightening torque.
Remove belt deflector (2).
Release screws (3).
Tightening torque.
Remove deflector bar (4).
.png)
Fig. 10: Identifying Deflector Bar And Belt Deflector
Release screws (1).
Installation:
Replace screws.
Tightening torque.
Remove automatic reel (2).
Installation:
Inertia reel unit is coded against incorrect installation (2).
.png)
Fig. 11: Identifying Automatic Reel With Screws
REMOVING AND INSTALLING/REPLACING REAR CENTER SEAT BELT
Necessary preliminary tasks:
- Partially remove backrest cover.
- Remove rear seat.
Unscrew nut (1).
Tightening torque.
Remove inertia reel mechanism (2).
Installation:
Inertia reel mechanism (2) is coded against incorrect installation.
Feed anchor fitting out of backrest cover and backrest frame.
.png)
Fig. 12: Identifying Inertia Reel Mechanism And

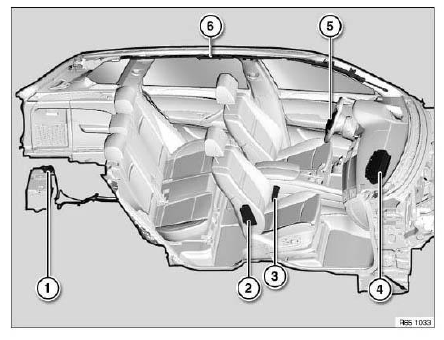

OVERVIEW OF AIRBAG MODULES, AIRBAG CONTROL UNIT, BELT TENSIONERS
.png)
Fig. 13: Identifying Airbag Modules, Airbag Control Unit, Belt Tensioners
Components Location
- Safety battery terminal (*)
- Side airbag, front seat, left/right (*)
- Belt tensioner, front left/right (*)
- Airbag unit, passenger side (*)
- Airbag module, driver's side (*)
- Head airbag, left/right (*)
(*) Components contain pyrotechnical devices
