BMW X5: Lights and lighting
Switches in the vehicle
.png)

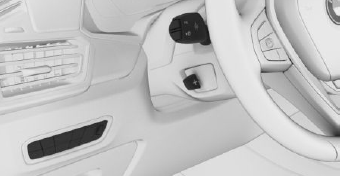

The light switch element is located next to the steering wheel.
.png)
Night vision.
.png)
Lights off.
Daytime driving lights.
.png)
Parking lights.
.png)
Automatic headlight control.
Adaptive light functions.
.png)
Low beams.
.png)
Instrument lighting.
.png)
Right roadside parking light.
.png)
Left roadside parking light.
Automatic headlight control
Principle
The low beams are switched on and off automatically depending on the ambient brightness, for example in tunnels, in twilight or if there is precipitation.
General information
A blue sky with the sun low on the horizon can cause the lights to be turned on.
If the low beams are switched on manually, the automatic headlight control is deactivated.
Activating
.png)
Press the button on the light
switch element.
The LED in the button lights up.
.png)
The indicator light in the
instrument cluster
is illuminated when the low beams are
switched on.
System limits
The automatic headlight control cannot replace your personal judgment of lighting conditions.
For example, the sensors are unable to detect fog or hazy weather. In these situations, turn the lights on manually.
