BMW X5: Measurement Stand With Clamp

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N62TU, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

SI number: 1 18 99 (489)

Order number: 00 2 480

Measurement stand with clamp

Consisting of:

  1. 00 2 481 Clamping foot
  2. 00 2 482 Clamping piece
  3. 00 2 483 Shaft
  4. 00 2 484 Shaft

Maintenance & General Information

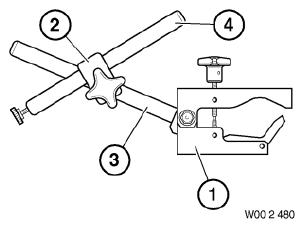

Fig. 45: Identifying Measurement Stand With Clamp (00 2 480)

DIAL GAUGE WITH FEELER

In conjunction with: 00 2 500

Note: Dial can be turned at outer ring to needle zero position

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N53, N54, N62, N62TU, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

Storage location: A13

Order number: 00 2 510

Dial gauge with feeler

Maintenance & General Information
Fig. 46: Identifying Dial Gauge With Feeler (00 2 510)

TORX SOCKETS E10, E12, E14

Note: Replaced by Torx tool kit (see Workshop Equipment and Planning Documentation Group 9)

Order number: 00 2 520

Torx sockets E10, E12, E14

Consisting of:

  1. 00 2 521 Torx socket E10
  2. 00 2 522 Torx socket E12
  3. 00 2 523 Torx socket E14

DEPTH GAUGE

Note: E.g. for determining axial play of transmission shaft and basic adjustment dimension for installing bevel pinion in rear differentials

Transmission: 240/5, 242/4, 245/5, 245/5Sport, 260/5, 262/4, 265/5, 265/5Sport, 280/5Sport, A4S 200R, A5S 360R, A5S 390R, GS5-39DZ, diff. 188kom, diff. 220kom, diff. 225kom, diff. type G, diff. type K, diff. type M, S5D 200G, S5D 250G, S5D 260Z, S5D 280Z, S5D 310Z, S5D 320Z, S5D 390Z, S6S 420G, S6S 560G

Storage location: A12, B12

Order number: 00 2 550

Depth gauge

Maintenance & General Information
Fig. 47: Identifying Depth Gauge (00 2 550)

CHARGER

Note: Charger for storage batteries in 00 4 400 and 00 4 410. > Input voltage 230 V / 50 Hz > Output voltage 1.65 V > Charge current miniature 4x400 mA > Charge current micro 4x300 mA

SI number: 1 01 05 (172)

Order number: 00 4 420

Charger

Maintenance & General Information

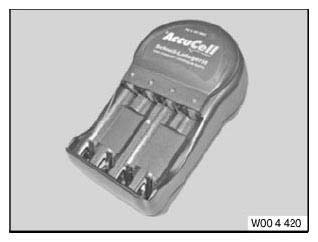

Fig. 48: Identifying Charger (00 4 420)
