BMW X5: Handle For Drifts

Minimum set: Mechanical tools

In conjunction with: 11 2 030

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1, RR2

Storage location: B31

Order number: 00 5 500

Handle for drifts

Maintenance & General Information
Fig. 52: Identifying Handle For Drifts (00 5 500)

UNIVERSAL PULLER KUKKO 17/K

Note: For removing bearing inner race from drive flange at rear wheel bearing

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E86, E87, E90, E91, E92, E93, R50, R52, R53, R56, RR1

Order number: 00 7 500

Universal puller Kukko 17/K

Consisting of:

  1. 00 7 501 Pressure spindle with bridge
  2. 00 7 502 Adjusting spindle (2 x) with knurled nuts (4 x)
  3. 00 7 503 Pressure spindle, side
  4. 00 7 504 Adjusting jaws (2 x)
  5. 00 7 505 Adjusting screws (2 x) with nuts
    Note: For adjusting jaw (2 x)
  6. 00 7 506 Extension (2 x)
  7. 00 7 507 Bridge

Maintenance & General Information

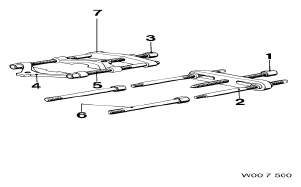

Fig. 53: Identifying Universal Puller Kukko 17/K (00 7 500)

HOOK SET

Note: For reorganization and mounting of existing special tools on tool boards - NOTE: The following individual tools cannot be ordered in the set!

Series: All models

Order number: 00 8 600

Hook set

Consisting of:

1 = 00 8 601 Hook No. 1
10 = 00 8 612 Hook No. 12
11 = 00 8 613 Hook No. 13
12 = 00 8 614 Hook No. 14
13 = 00 8 615 Hook No. 15
14 = 00 8 616 Hook No. 16
15 = 00 8 617 Hook No. 17
16 = 00 8 620 Hook No. 20
17 = 00 8 621 Hook No. 21
18 = 00 8 622 Hook No. 22
19 = 00 8 625 Hook No. 25
2 = 00 8 602 Hook No. 2
20 = 00 8 626 Hook No. 26
21 = 00 8 628 Hook No. 28
22 = 00 8 629 Hook No. 29
23 = 00 8 630 Hook No. 30
3 = 00 8 603 Hook No. 3
4 = 00 8 604 Hook No. 4
5 = 00 8 606 Hook No. 6
6 = 00 8 608 Hook No. 8
7 = 00 8 609 Hook No. 9
8 = 00 8 610 Hook No. 10
9 = 00 8 611 Hook No. 11

MAGNET

Storage location: Tool cabinet

Order number: 00 8 660

Magnet

Maintenance & General Information
Fig. 54: Identifying Magnet (00 8 660)

WASHERS AND SCREWS

Order number: 00 8 690

Washers and screws

Consisting of:

1 = 00 8 691 Washers, 100 x
2 = 00 8 692 Screws, 100 x
3 = 00 8 693 Screws, 100 x

Note: For USA

4 = 00 8 694 Box 40 mm
5 = 00 8 695 Box 100 mm
6 = 00 8 696 Box 150 mm

CIRCLIP PLIERS

Note: External circlip - With long legs, 90º angle

Series: All models

Order number: 00 9 110

Circlip pliers

Maintenance & General Information
Fig. 55: Identifying Circlip Pliers (00 9 110)
