BMW X5: Front Axle Overview

Front Axle

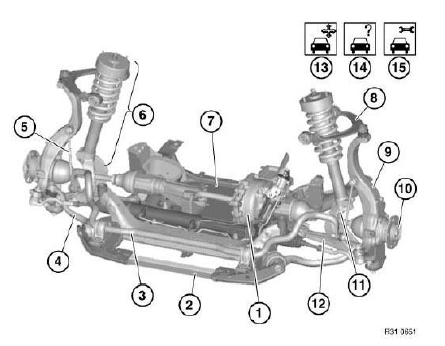

Fig. 3: Front Axle Overview

  1. Overview of front differential/output shafts
  2. Front axle support
  3. Stabiliser
  4. Tension strut / rubber mount
  5. Stabilizer link
  6. Layout of spring strut shock absorber
  7. Reinforcement plate
  8. Upper control arm
  9. Swivel bearing
  10. Wheel bearing
  11. Spring strut holder
  12. Lower control arm / rubber
  13. Adjustment work
  14. Testing
  15. Troubleshooting

Front Axle

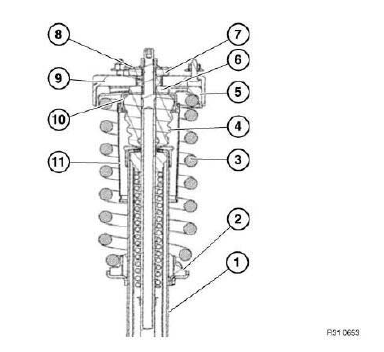

Fig. 4: Layout Of Spring Strut Shock Absorber

  1. Spring strut shock absorber
  2. Lower spring pad
  3. Coil spring
  4. Auxiliary damper
  5. Upper spring pad
  6. Support bearing lower section
  7. Support bearing upper section
  8. Joint seat
  9. Support bearing flange
  10. Support pot
  11. Protective tube

OVERVIEW OF FRONT DIFFERENTIAL/OUTPUT SHAFTS

Front Axle

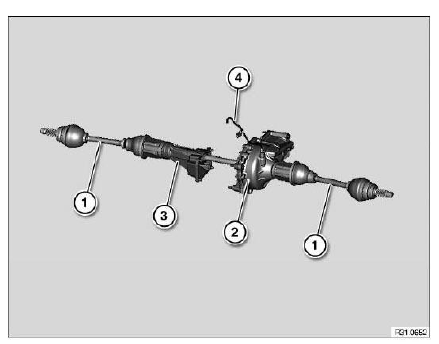

Fig. 5: Overview Of Front Differential/Output Shafts

  1. Output shaft / gaiters
  2. Front differential
  3. Bearing block
  4. Vent pipe

FRONT AXLE + STEERING: WHEEL/CHASSIS ALIGNMENT CHECK MUST BE CARRIED OUT AFTER THE FOLLOWING WORK

Front Axle

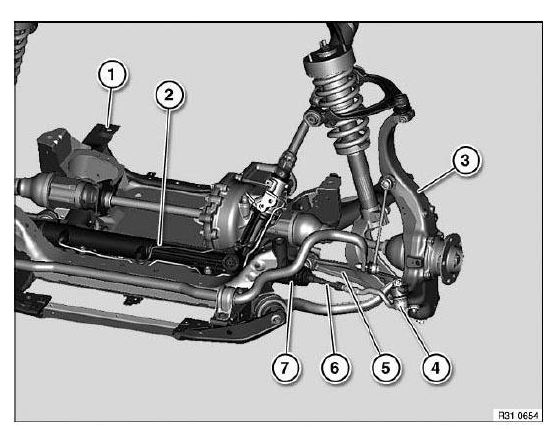

Fig. 6: Identifying Front Axle Components

A wheel/chassis alignment check must be carried out after the following work.
