BMW X5: Frame Alignment Control Dimensions, Body
Dimensions in mm.
Measurement tolerances:
- < or = 1000 mm +- 1.5 mm
- > or = 1000 mm +- 2.5 mm
The control points shown serve to check the body and the straightening
attachment.
The specified dimensions/measurements always refer to the centerpoint of the
bore/screw.
Underbody view 1
.png)

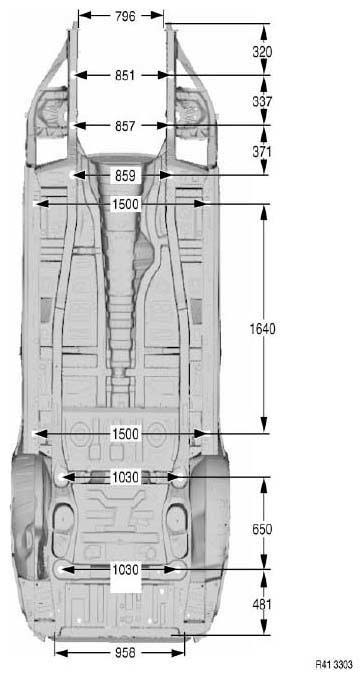

Fig. 1: Identifying Underbody View 1 Dimensions
Underbody view 2
.png)

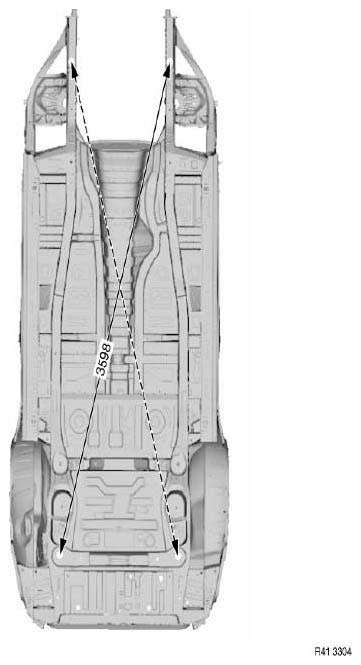

Fig. 2: Identifying Underbody View 2 Dimensions
Top view, front end
.png)

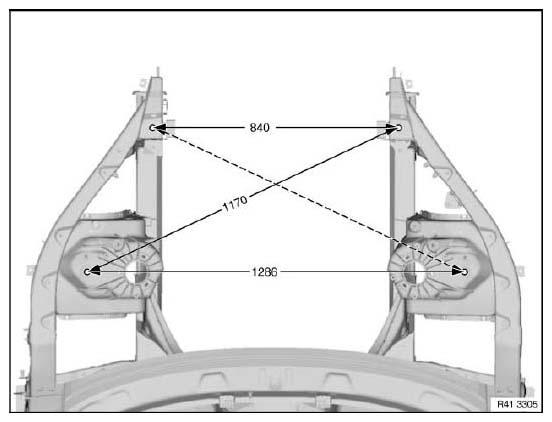

Fig. 3: Identifying Top View, Front End Dimensions
The specified dimensions refer to removed assemblies.
View, B-pillar
.png)

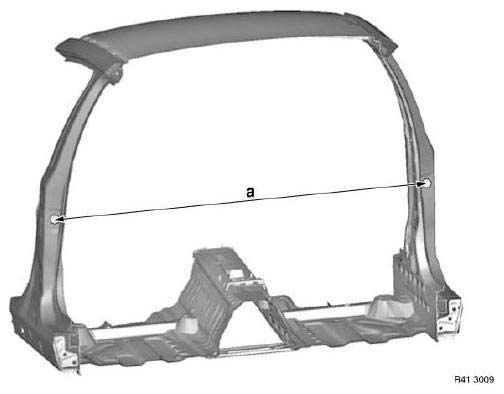

Fig. 4: View Of B-Pillar
Measurement a=1659 mm between upper screw-on points of door retainers.
