BMW X5: Engine Adaptation Values

Engine adaptation values can be broken down into two categories:

• Additive Mixture Adaptation - additive adaptation refers to "long term fuel trim". These adaptation are made by the ECM (DME) at idle during "closed loop" fuel control. These values are measured in milliseconds and are expressed in negative and positive values.
• Multiplicative Mixture Adaptation - multiplicative adaptation occurs during part load conditions and are performed by the ECM during "closed loop" fuel control. These values are measured in percent and are also expressed as negative and positive values. This is also referred to as "short term fuel trim".

Additive mixture adaptation corrects for variations in idle mixture. The ECM monitors the oxygen sensor signals to evaluate the exhaust mixture. When a lean (or rich) mixture is detected, the ECM increases (or decreases) the injector "on-time" to correct accordingly.

As long as the fuel trim correction is not excessive, the ECM will not register a fault code. The ECM will correct in increments of +/-.1 ms. When the fuel trim correction exceeds a predetermined threshold value, the check engine light (MIL) will illuminate and store appropriate fault codes for additive mixture adaptation.

Additive values which are excessively positive, would indicate a lean condition. This can be caused by:

• Un-metered air leaks - such as broken vacuum lines or a leaky intake manifold or gasket.
• Faulty crankcase ventilation system - crankcase vent valve stuck open.
• Low fuel pressure - Faulty fuel pressure regulator or fuel pump.
• Faulty HFM - can be sending erroneous load signal information which would cause the ECM to falsely enrich the mixture.

Additive values which are excessively negative, would indicate a rich condition. This can be caused by:

• An air restriction - any restriction to airflow such as a clogged air filter would create a rich fuel mixture.

  (this may also be indicated by negative multiplication values)

• Faulty crankcase ventilation system - crankcase vent valve stuck closed.
• High fuel pressure - Possible faulty fuel pressure regulator or restricted return line
• Faulty HFM - can be sending erroneous load signal information which would cause the ECM to falsely lean out the mixture.

NOTE: Some newer engine management systems use the term mg/stroke or milligrams per stroke. Treat these values as you would millisecond values.

Multiplicative mixture adaptation corrects for variations in fuel mixture under part load conditions. The ECM monitors the oxygen sensor signals to evaluate the exhaust gas mixture. When a lean (or rich) mixture is detected the ECM adjusts the injector "on-time" accordingly over a "short term" period to adapt for the existing situation.

Multiplicative values are expressed in percent and can be negative or positive. Negative values indicate a rich mixture and positive values indicate a lean mixture. When the Multiplicative values exceed a predetermined threshold value, the check engine light (MIL) will illuminate and store relevant fault codes for Multiplicative adaptation.

When multiplicative values are excessively positive, a lean condition exists. The ECM is attempting to add fuel to maintain the proper fuel mixture (close to lambda value 1). This situation can be caused by a faulty HFM, low fuel volume, restricted fuel filter or faulty fuel pressure regulator.

When the values are negative, the ECM is attempting to lean out (remove fuel) the fuel mixture to compensate for a rich condition. This can be caused by:

• Excessive fuel pressure - from a faulty fuel pressure regulator or restriction in the return line.
• A faulty HFM - the HFM can be sending erroneous load signal information which would cause the ECM to falsely enrich the mixture.
• An Air restriction - any restriction to airflow such as a clogged air filter would create a rich fuel mixture.
• Any system failure which would cause the mixture to be falsely enriched. This could be caused by erroneous signal information from sensors such as the engine coolant temperature sensor or intake air temperature sensor.

Engine Misfire Diagnosis

Engines which have been produced since 1996 are OBDII complaint. The CARB/OBD regulations require the ECM to be capable of detecting misfires. Also, the ECM must be able to determine if the misfires increase engine emissions and/or are catalyst damaging.

The ECM detects engine misfires by monitoring crankshaft speed. The ECM receives the input from the crankshaft sensor and determines if there is a misfire present by comparing crankshaft speed variations between combustion events on each cylinder.

The crankshaft must rotate 720 degrees (2 rotations) to fire all of the cylinders in an engine regardless of the number of cylinders. Therefore each firing event is spaced apart and occurs at a specific time. By monitoring the crankshaft signal the ECM can determine which cylinder is misfiring and also the severity of the misfire.

Misfires are classified in 2 levels of severity:

• Misfires which increase emission levels - These misfires occur within an interval of 1000 crankshaft revolutions. The ECM counts and adds the detected misfire events for each cylinder. If the sum of all cylinder misfire incidents exceeds the predetermined value, a fault code will be stored and the "MIL" will be illuminated.

  If more than one cylinder is misfiring, all misfiring cylinders will be specified and the individual fault codes will be stored. The "MIL will be illuminated".

• Misfires which are catalyst damaging - These misfires are determined when the sum of the misfiring events occurs within 200 crankshaft revolutions. These misfires are considered catalyst damaging and the "MIL" will be illuminated.

The ECM will take the following measures - the oxygen sensor control will be switched to "open loop", a cylinder selective fault code will be stored for one or more cylinders and the relevant fuel injector(s) will be deactivated.

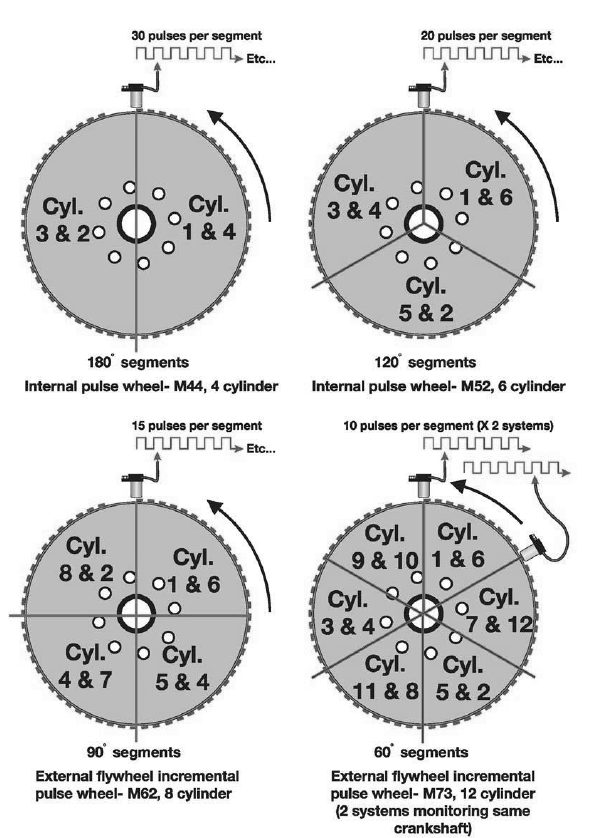

Fig. 20: Identifying Crankshaft Positioning Sensor

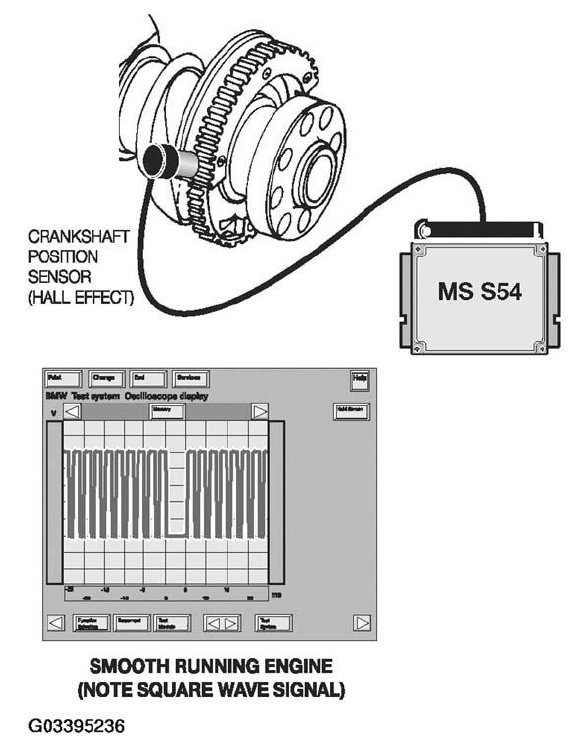

Fig. 21: Displaying Smooth Running Engine Waves

The causes of engine misfires include:

• Ignition System - spark plugs, ignition coils, secondary circuit components and primary/secondary circuit wiring.
• Engine Mechanical - piston, piston rings, valves, camshaft and any valvetrain related components including Valvetronic. Valvetronic components include eccentric shaft, intermediate levers etc.

  The crankcase ventilation system should also be considered. This includes the crankcase ventilation valve and if applicable, the hose connections as well.

• Fuel System - fuel injectors, fuel pump, fuel filter and pressure regulator etc. This includes fuel quality as well. Other fuel system components include fuel tank vent valve (purge) as well as running losses components such as the 3/2 valve etc.
• Engine Electronics - any implausible input from a sensor such as the crankshaft sensor and camshaft sensor. Also any sensor which affects fuel mixture including HFM, coolant/intake air temperature sensors etc.
• Other items include the catalyst which could be restricted and/or the muffler.

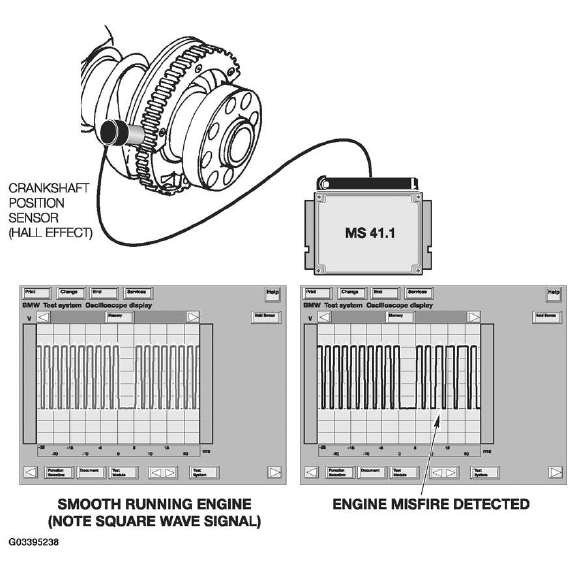

Fig. 22: Displaying Engine Misfire Waves
