BMW X5: Automatic sliding and anti-slip rails

BMW X5 (G05) 2019-2024 Owners Manual / Controls / Cargo area / Automatic sliding and anti-slip rails

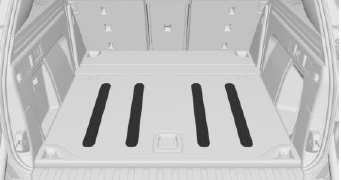

Principle

Cargo area

The system prevents slipping of the cargo in the cargo area when the anti-slip tracks are extended to the top.

General information

Observe information and notes on loading.

The anti-slip tracks extend up automatically when one of the following conditions is met:

Multifunction hook

General information

A multifunction hook is located on the left and right side in the cargo area.

Safety information

Warning

Improper use of the multifunction hooks can lead to a risk of objects flying about during braking and evasive maneuvers, for example.

There is a risk of injury and risk of damage to property. Only hang lightweight objects from the multifunction hooks. Only transport heavy luggage in the cargo area if it has been appropriately secured.

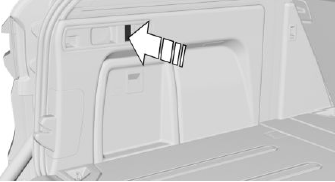

Folding out the multifunction hook

Cargo area

Press on the multifunction hook and turn until it engages.

Net

Small objects can be stowed in the net on the right side.

Storage compartment on the left side

General information

A storage compartment is located on the left side in the cargo area.

Opening the storage compartment

Cargo area

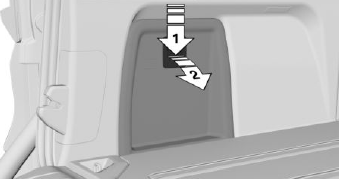

Press the button, arrow 1, and open the cover, arrow 2.

Storage compartments under the cargo floor panel

General information

There are storage compartments beneath the cargo floor panel.

Opening the storage compartments

Cargo area

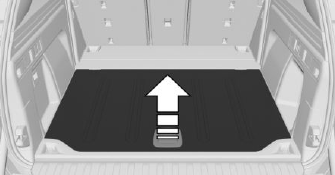

Fold up the cargo floor panel.

Closing the storage compartments

Push the cargo floor panel downward.
