BMW X5: Overview

BMW X5 (G05) 2019-2025 Owners Manual / Mobility / Engine compartment / Overview

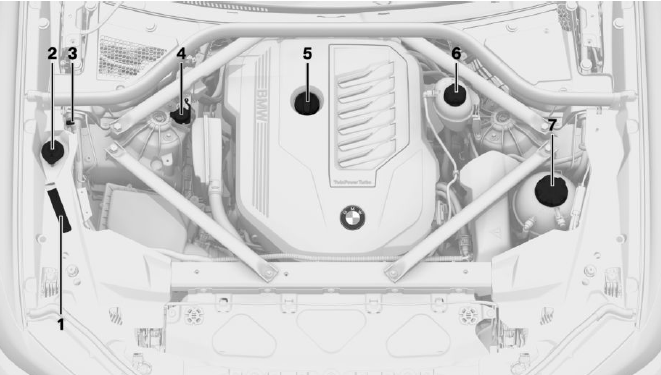

Engines with 4 or 6 cylinders

Engine compartment

  1. Vehicle identification number
  2. Filler neck for washer fluid
  3. Jump-starting, negative battery terminal
  4. Jump-starting, positive battery terminal
  5. Oil filler neck
  6. Coolant reservoir, auxiliary cooling
  7. Coolant reservoir, engine

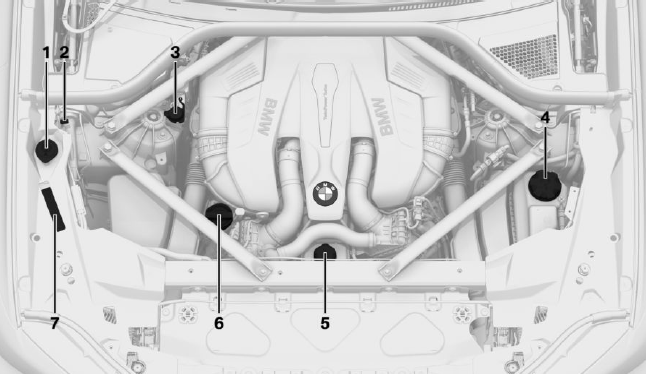

8-cylinder engine

Engine compartment

  1. Filler neck for washer fluid
  2. Jump-starting, negative battery terminal
  3. Jump-starting, positive battery terminal
  4. Coolant reservoir, engine
  5. Coolant reservoir, auxiliary cooling
  6. Oil filler neck
  7. Vehicle identification number
