BMW X5: Special Tool
SPECIAL TOOL BOARD I
Order number: 00 0 010
Special tool board I
SPECIAL TOOL BOARD II COMPLETE
In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.
Note: Size 2 m x 1 m
Series: All models
Storage location: Tool cabinet
Order number: 00 0 020
Special tool board II complete
.png)

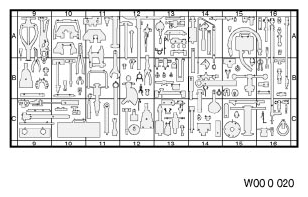

Fig. 1: Identifying Special Tool Board II (00 0 020)
SPECIAL TOOL BOARD III COMPLETE
In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.
Note: Size 2 m x 1 m
Series: All models
Storage location: Tool cabinet
Order number: 00 0 030
Special tool board III complete
.png)

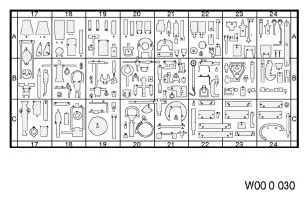

Fig. 2: Identifying Special Tool Board III (00 0 030)
SPECIAL TOOL BOARD IV COMPLETE
In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.
Note: Size 2 m x 1 m
Series: All models
Storage location: Tool cabinet
Order number: 00 0 040
Special tool board IV complete
Consisting of:
3 = 00 0 043 Hook set for films 10, 11 and 12
4 = 00 0 044 Film 10 (left)
Note: For fields A/B/C 25... 27
5 = 00 0 045 Film 11 (center)
Note: For fields A/B/C 27/28 and 29/30
6 = 00 0 046 Film 12 (right)
Note: For fields A/B/C 30... 32
.png)

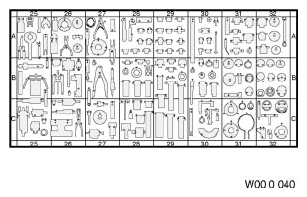

Fig. 3: Identifying Special Tool Board IV (00 0 040)
CAPTION BOARD: "SPECIAL TOOLS"
Note: With film sheet in the desired language - size 2000 mm x 215 mm
Storage location: Tool cabinet
Order number: 00 0 050
Caption board: "SPECIAL TOOLS"
.png)
Fig. 4: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)
READ NEXT:
Film Sheet
FILM SHEET, GERMAN
Order number: 00 0 051
Film sheet, German
Fig. 5: Identifying Caption Board: "SPECIAL TOOLS" (00 0 050)
FILM SHEET, ENGLISH
Order number: 00 0 052
Film sheet, English
Fig. 6: Iden
Cardboard Box
Minimum set: Measuring and testing equipment
Note: As storage location "Y3" for MINI V-adapter leads (with launch of R56)
SI number: 2 09 06 313
Order number: 00 0 110
Cardboard box
Fig. 13: Identify
Cable Cabinet, Complete
CABLE CABINET II, COMPLETE
Note: For extended accommodation of adapter leads as well as measuring and
test equipment
SI number: 0 02 99 (399)
Order number: 00 0 180
Cable cabinet II, complete
Consist
